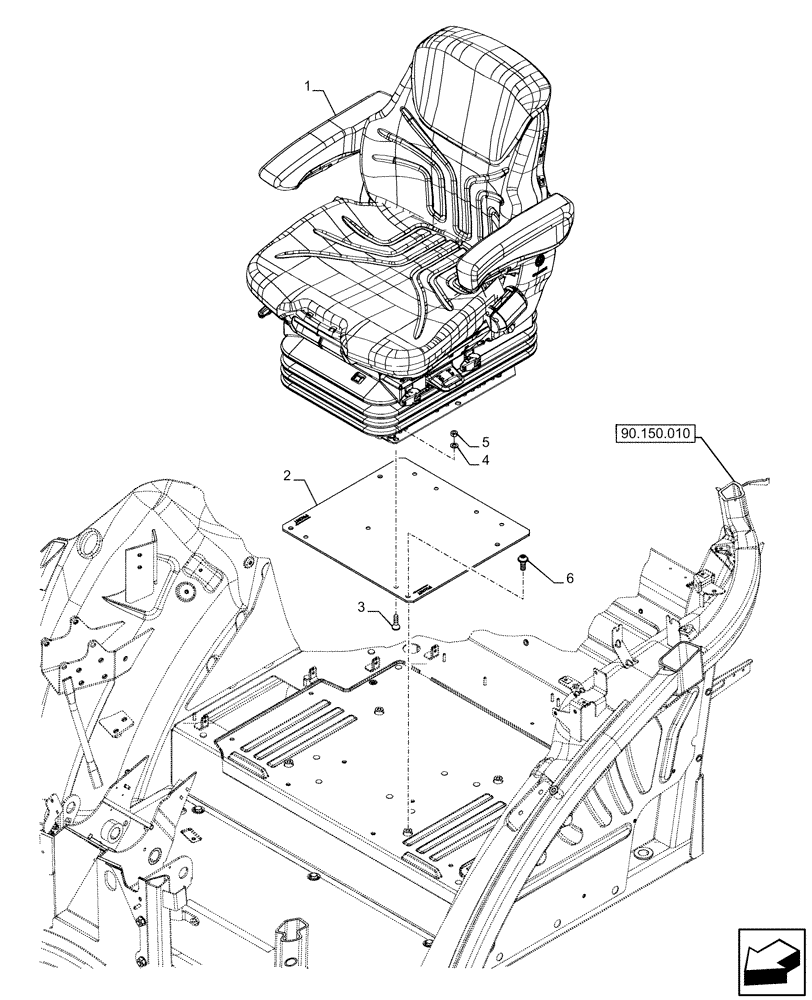

Запчасти Case IH FARMALL 120U (90.124.120) - VAR - 758312 - SUSPENSION SEAT, PREMIUM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47476148

DRIVER SEAT

ASSY

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Section, Subsection 55.512, 90.124, 90.151

1шт.

2

84469342

PLATE

1шт.

3

14442024

SCREW,Flat Csk Hd, M8 x 1.25 x 20mm, Cl 8.8

4шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

5

16100814

NUT,M8, Cl 8, DAC

4шт.

6

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

4шт.
