(90.124.110) - VAR - 758312 - SUSPENSION SEAT, PREMIUM, COMPONENTS, EHR, JOYSTICK

Запчасти Case IH FARMALL 120U (90.124.110) - VAR - 758312 - SUSPENSION SEAT, PREMIUM, COMPONENTS, EHR, JOYSTICK (90) - PLATFORM, CAB, BODYWORK AND DECALS

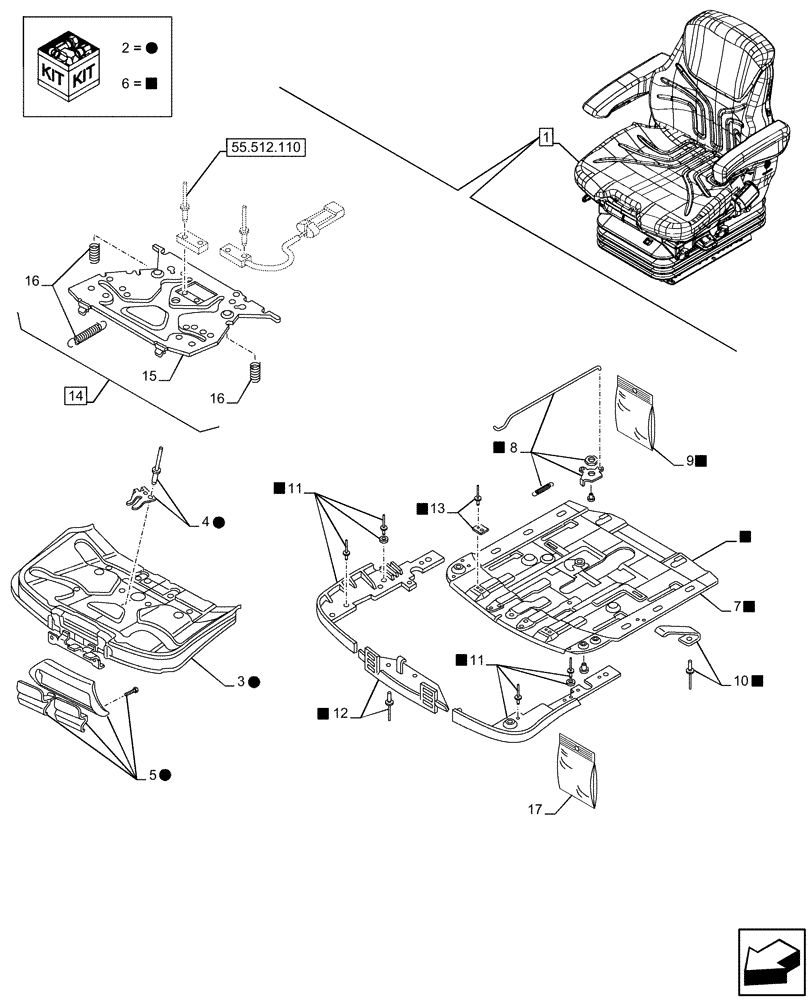

Схема запчастей Case IH FARMALL 120U - (90.124.110) - VAR - 758312 - SUSPENSION SEAT, PREMIUM, COMPONENTS, EHR, JOYSTICK (90) - PLATFORM, CAB, BODYWORK AND DECALS
55.512.110
7
8
4
12
16
5
11
6
16
1
9
17
6
2
3
6
15
6
6
6
6
2
10
2
6
13
6
11
14
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47488669

DRIVER SEAT

ASSY, Incl 2 - 17

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Section, Subsection 55.512, 90.124, 90.151

1шт.

2

84191153

ADJUSTER

SERVICEABLE KIT, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Frame, Incl in 2

1шт.

4

1-34-751-739

FIXING PLATE

1шт.

5

84191160

TRIGGER

1шт.

6

84191167

ADJUSTER

SERVICEABLE KIT, Incl 7 - 13

1шт.

7

NSS

NOT SOLD SEPARAT

Frame, Incl in 6

1шт.

8

345775A1

LEVER

1шт.

9

84191203

CONTROL LEVER

1шт.

10

84191175

SEAT PLATE

1шт.

11

1-34-751-727

COVER

1шт.

12

1-34-751-728

COVER

1шт.

13

84191178

SET OF PARTS

1шт.

14

84191141

PLATE

ASSY, Incl 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

Plate, Incl in 14

1шт.

16

84191201

SET OF PARTS

1шт.

17

84191202

SET OF PARTS

1шт.
