(90.124.100) - VAR - 758312 - SUSPENSION SEAT, PREMIUM, BELLOWS, EHR, JOYSTICK

Запчасти Case IH FARMALL 120U (90.124.100) - VAR - 758312 - SUSPENSION SEAT, PREMIUM, BELLOWS, EHR, JOYSTICK (90) - PLATFORM, CAB, BODYWORK AND DECALS

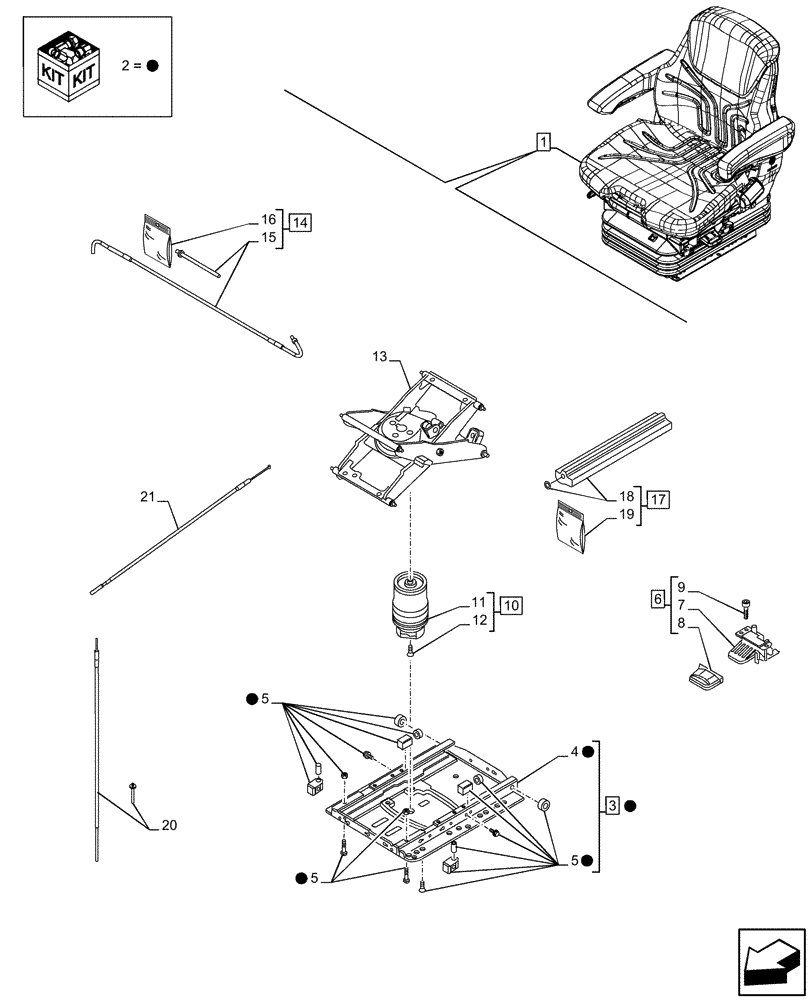

Схема запчастей Case IH FARMALL 120U - (90.124.100) - VAR - 758312 - SUSPENSION SEAT, PREMIUM, BELLOWS, EHR, JOYSTICK (90) - PLATFORM, CAB, BODYWORK AND DECALS
19
15
11
14
7
6
5
8
20
18
3
2
4
5
16
17
1
13
9
5
21
12
2
2
2
10
2
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47488669

DRIVER SEAT

ASSY, Incl 2 - 21

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Section, Subsection 55.512, 90.124, 90.151

1шт.

2

84190975

REPAIR KIT

SERVICEABLE KIT, Incl 3 - 5

1шт.

3

84190976

PLATE

ASSY, Incl 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Suspension, Incl in 3

1шт.

5

84191014

REPAIR KIT

1шт.

6

345107A1

LEVER

ASSY, Incl 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Lever, Incl in 6

1шт.

8

84191000

HANDLE

1шт.

9

84191017

REPAIR KIT

1шт.

10

84190972

SHOCK ABSORBER

ASSY, Incl 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

Air Spring, Incl in 10

1шт.

12

84191012

REPAIR KIT

1шт.

13

NSS

NOT SOLD SEPARAT

Suspension, Incl in 1

1шт.

14

84191079

KIT

ASSY, Incl 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

Tube, Incl in 14

1шт.

16

84191016

REPAIR KIT

1шт.

17

84191082

SERVICE KIT

ASY, Incl 18, 19

1шт.

18

NSS

NOT SOLD SEPARAT

Reservoir, incl in 17

1шт.

19

84191086

REPAIR KIT

1шт.

20

84191077

TUBE

1шт.

21

84190997

BOWDEN CONTROL

1шт.
