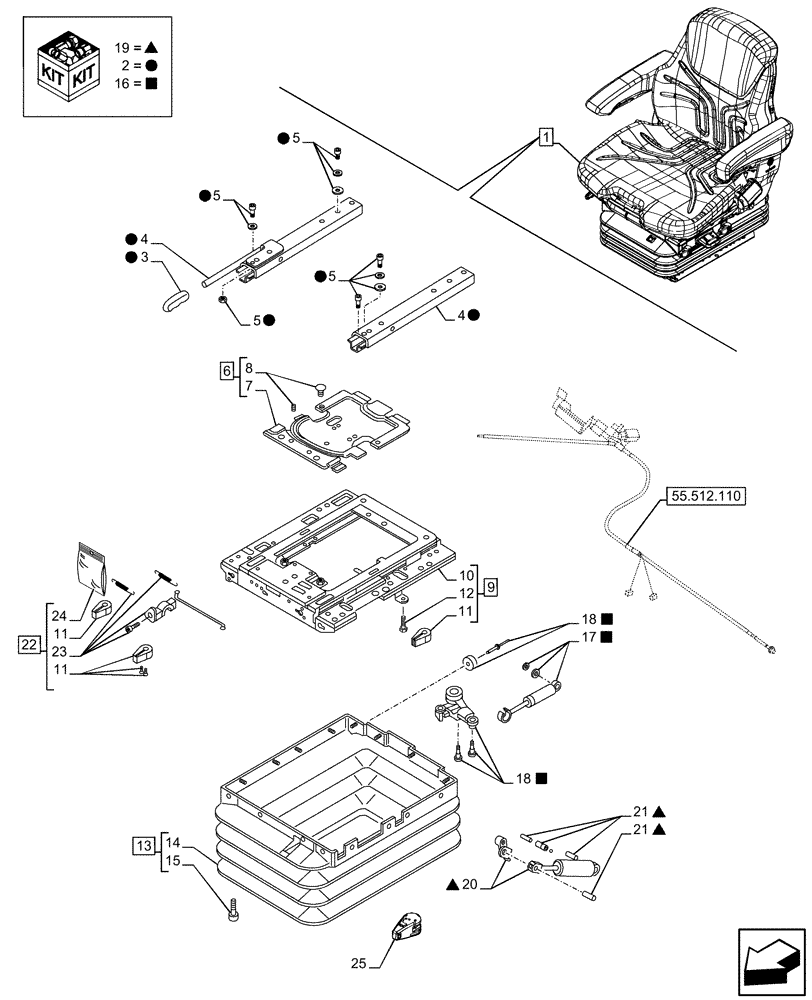

Запчасти Case IH FARMALL 120U (90.124.090) - VAR - 758312 - SUSPENSION SEAT, PREMIUM, COMPONENTS, EHR, JOYSTICK (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47488669

DRIVER SEAT

ASSY, Incl 2 - 25

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Section, Subsection 55.512, 90.124, 90.151

1шт.

2

84280035

KIT

SERVICEABLE KIT, Incl 3 - 5

1шт.

3

9971715

HANDLE

1шт.

4

NSS

NOT SOLD SEPARAT

Adjustment, Incl in 2

1шт.

5

84247566

REPAIR KIT

1шт.

6

84190947

COVER

ASSY,Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Cover, Incl in 6

1шт.

8

84191006

REPAIR KIT

1шт.

9

84190966

PLATE

ASSY, Incl 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

Frame, Incl in 9

1шт.

11

1472163

HANDLE

1шт.

12

84191010

REPAIR KIT

1шт.

13

84190978

BELLOWS

ASSY, Incl 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

Frame, Incl in 13

1шт.

15

84191003

REPAIR KIT

1шт.

16

84190983

SHOCK ABSORBER

SERVICEABLE KIT, Incl 17, 18

1шт.

17

84190985

SHOCK ABSORBER

1шт.

18

84191002

REPAIR KIT

1шт.

19

84191071

KIT

SERVICEABLE KIT, Incl 20, 21

1шт.

20

NSS

NOT SOLD SEPARAT

Shock Absorber, Incl in 19

1шт.

21

84190998

SERVICE KIT

1шт.

22

84190989

ADJUSTER

ASSY, Incl 11, 23, 24

1шт.

23

NSS

NOT SOLD SEPARAT

Height Adjustment, Incl in 22

1шт.

24

84191015

REPAIR KIT

1шт.

25

82035123

HANDLE

1шт.
