(90.124.070) - VAR - 758312 - SUSPENSION SEAT, PREMIUM, CUSHION, EHR, JOYSTICK

Запчасти Case IH FARMALL 120U (90.124.070) - VAR - 758312 - SUSPENSION SEAT, PREMIUM, CUSHION, EHR, JOYSTICK (90) - PLATFORM, CAB, BODYWORK AND DECALS

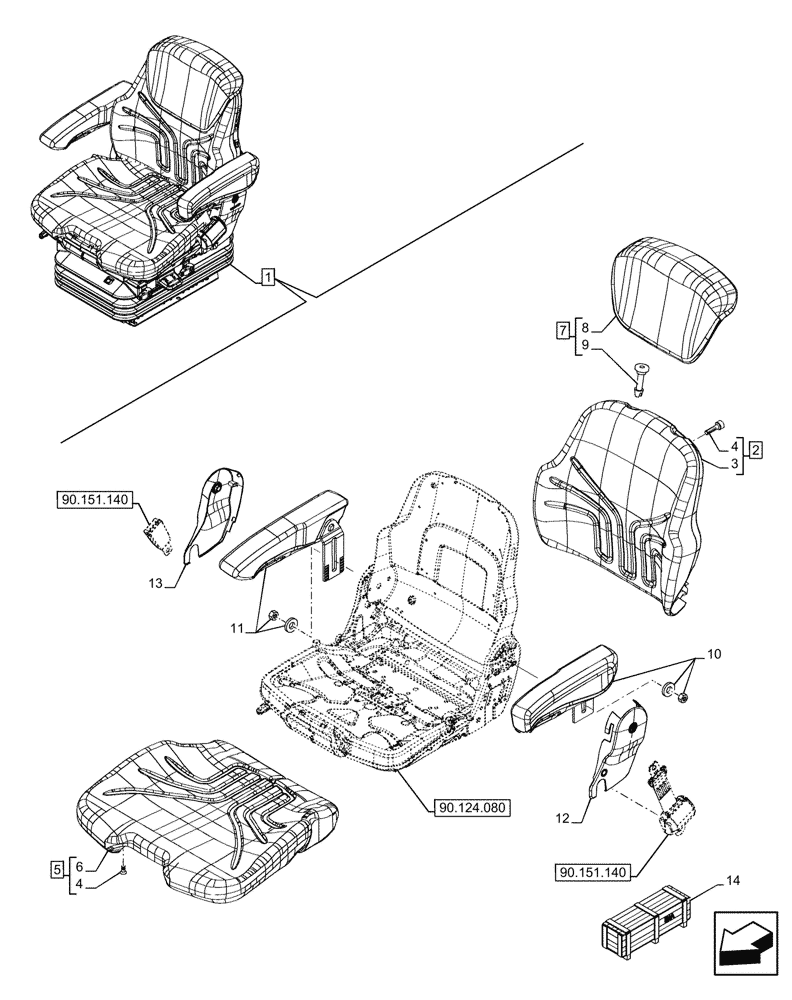

Схема запчастей Case IH FARMALL 120U - (90.124.070) - VAR - 758312 - SUSPENSION SEAT, PREMIUM, CUSHION, EHR, JOYSTICK (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.151.140
1
12
7
13
4
5
2
14
4
9
8
3
6
11
10
90.124.080
90.151.140
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47488669

DRIVER SEAT

ASSY, Incl 2 - 13

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Section, Subsection 55.512, 90.124, 90.151

1шт.

DRIVER SEAT

1шт.

2

47539982

BACKREST

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Backrest, Incl in 2

1шт.

4

84191200

SET OF PARTS

1шт.

5

47540001

CUSHION

ASSY, Incl 4, 6

1шт.

6

NSS

NOT SOLD SEPARAT

Cushion, Incl in 5

1шт.

7

84191100

SEAT HEADREST

ASSY, Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Headrest, Incl in 7

1шт.

9

84191112

GUIDE

1шт.

10

84283757

ARMREST

1шт.

11

82025110

ARMREST

1шт.

12

71491405

COVER

LH

1шт.

13

84171458

COVER

RH

1шт.

14

718196070

DIA KIT, TRACTOR

Electrohydraulic Mid Mount with Electronic Joystick, Incl 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
