(90.124.050) - VAR - 332850 - DELUXE SUSPENSION SEAT, BELLOWS

Запчасти Case IH FARMALL 120U (90.124.050) - VAR - 332850 - DELUXE SUSPENSION SEAT, BELLOWS (90) - PLATFORM, CAB, BODYWORK AND DECALS

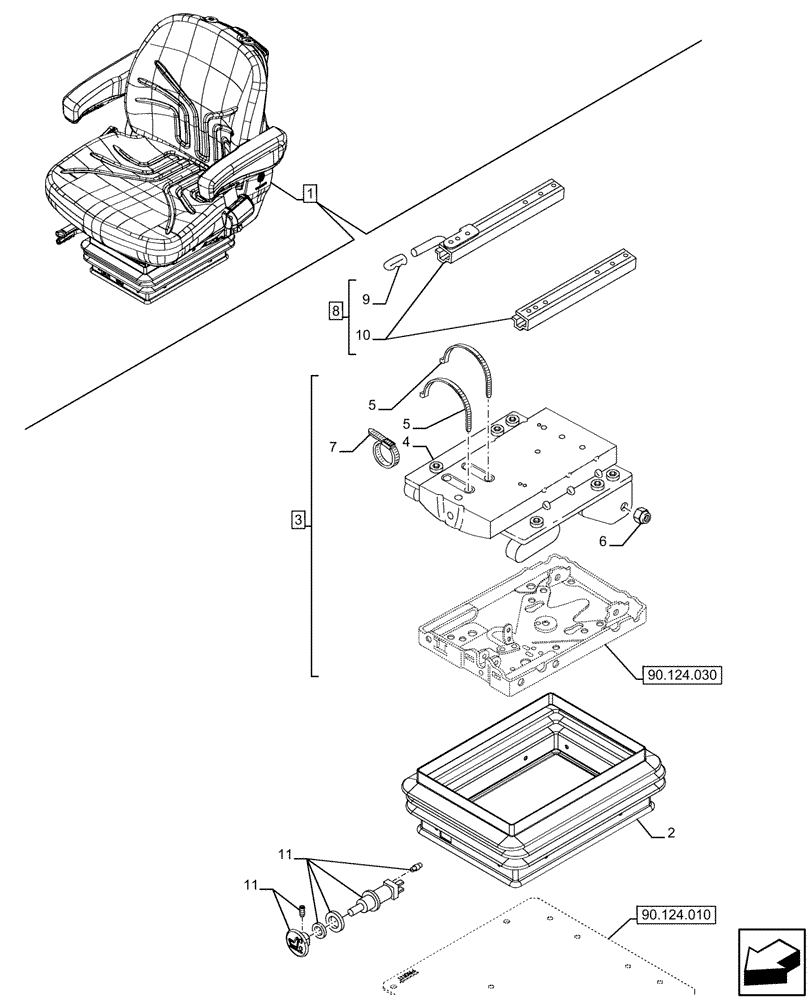

Схема запчастей Case IH FARMALL 120U - (90.124.050) - VAR - 332850 - DELUXE SUSPENSION SEAT, BELLOWS (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.030
5
6
2
10
3
11
4
7
9
5
8
11
1
90.124.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47476146

DRIVER SEAT

ASSY, Incl 2 - 11

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Section, Subsection 55.512, 90.124, 90.151

1шт.

2

82035104

BELLOWS

1шт.

3

9971516

MOUNTING PLATE

ASSY, Incl 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

Suspension, Incl in 3

1шт.

5

84171410

WIRE CLAMP

2шт.

6

82034883

NUT,CL 8.8

2шт.

7

87567529

CABLE TIE,200mm L

1шт.

8

87331929

SET OF PARTS

ASSY, Incl 9, 10

1шт.

9

9971715

HANDLE

1шт.

10

NSS

NOT SOLD SEPARAT

Rails, Incl in 8

1шт.

11

87705191

KIT

1шт.
