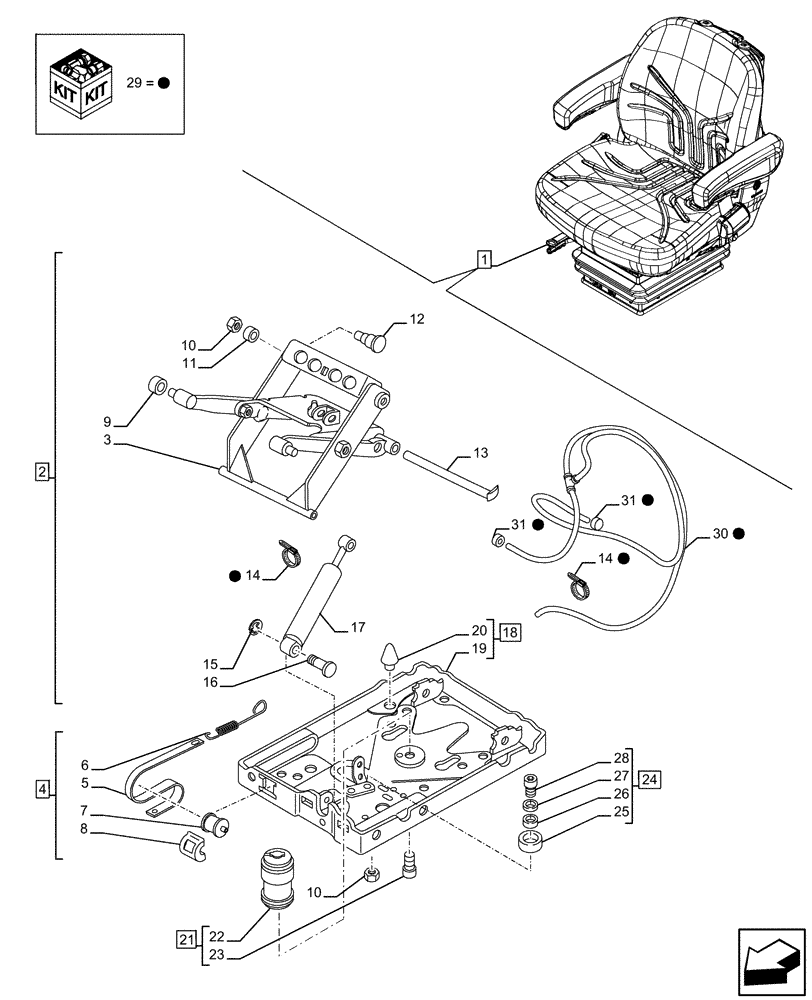

Запчасти Case IH FARMALL 120U (90.124.040) - VAR - 332850 - DELUXE SUSPENSION SEAT, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47476146

DRIVER SEAT

ASSY, Incl 2 - 31

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Section, Subsection 55.512, 90.124, 90.151

1шт.

2

82035107

ARM

ASSY, Incl 3 - 9, 10 (Qty 2), 11 - 16

1шт.

3

NSS

NOT SOLD SEPARAT

Support, Incl in 2

1шт.

4

82035102

INDICATOR

ASSY, Incl 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

Weight Indicator, Incl in 4

1шт.

6

9958790

SPRING

1шт.

7

9958785

ROLLER

1шт.

8

9958786

GUIDE

1шт.

9

9958784

SPACER

4шт.

10

82034883

NUT,CL 8.8

3шт.

11

82035048

BUSHING

4шт.

12

9972175

PIN

2шт.

13

9972176

PIN

1шт.

14

87567529

CABLE TIE,200mm L

7шт.

15

9972178

CIRCLIP,M5

2шт.

16

9959588

BOLT,M8 x 22mm

2шт.

17

82035058

SHOCK ABSORBER

1шт.

18

82035119

SUSPENSION

ASSY, Incl 19, 20

1шт.

19

NSS

NOT SOLD SEPARAT

Suspension Lower, Incl in 18

1шт.

20

71485476

BUMPER

2шт.

21

87705193

KIT

ASSY, Incl 22, 23

1шт.

22

NSS

NOT SOLD SEPARAT

Spring Air, incl in 21

1шт.

23

345112A1

SCREW,M8 x 20mm L

1шт.

24

82035088

KIT

ASSY, Incl 10 (Qty 1), 25 - 28

1шт.

25

NSS

NOT SOLD SEPARAT

Bumber, Incl in 24

1шт.

26

85817525

SPACER

1шт.

27

82034881

WASHER,8.4mm ID

1шт.

28

82035047

SCREW,M8 x 20mm

1шт.

29

87705194

HOSE KIT

ASSY, Incl 14, 30, 31

1шт.

30

NSS

NOT SOLD SEPARAT

Hose, Incl in 29

1шт.

31

87331945

FERRULE

2шт.
