(90.124.020) - VAR - 332850 - DELUXE SUSPENSION SEAT, CUSHION

Запчасти Case IH FARMALL 120U (90.124.020) - VAR - 332850 - DELUXE SUSPENSION SEAT, CUSHION (90) - PLATFORM, CAB, BODYWORK AND DECALS

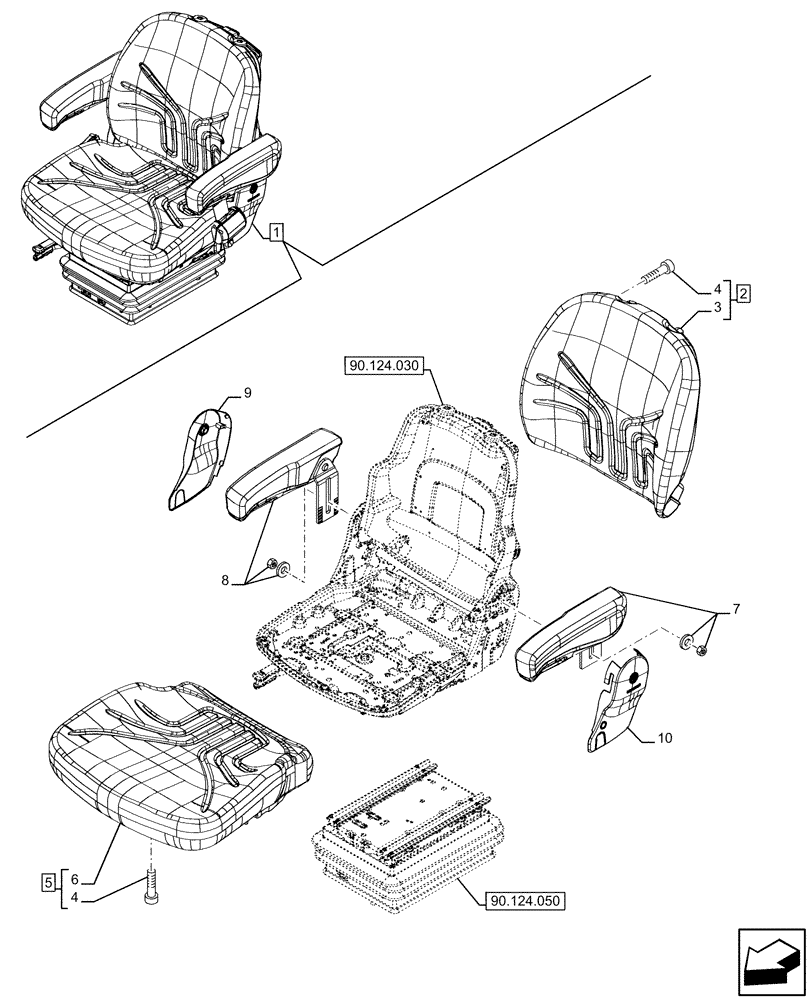

Схема запчастей Case IH FARMALL 120U - (90.124.020) - VAR - 332850 - DELUXE SUSPENSION SEAT, CUSHION (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.050
7
3
2
6
8
4
1
10
9
5
4
90.124.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47476146

DRIVER SEAT

ASSY, Incl 2 - 10

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Section, Subsection 55.512, 90.124, 90.151

1шт.

2

84172430

SEAT BACK

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Backrest, Incl in 2

1шт.

4

84191200

SET OF PARTS

1шт.

5

84172428

SEAT CUSHION

ASSY, Incl 4, 6

1шт.

6

NSS

NOT SOLD SEPARAT

Cuschion, Incl in 5

1шт.

7

84283757

ARMREST

LH

1шт.

8

82025111

ARMREST

RH

1шт.

9

84171458

COVER

RH

1шт.

10

71491405

COVER

LH

1шт.
