(90.124.010) - VAR - 332850 - DELUXE SUSPENSION SEAT

Запчасти Case IH FARMALL 120U (90.124.010) - VAR - 332850 - DELUXE SUSPENSION SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

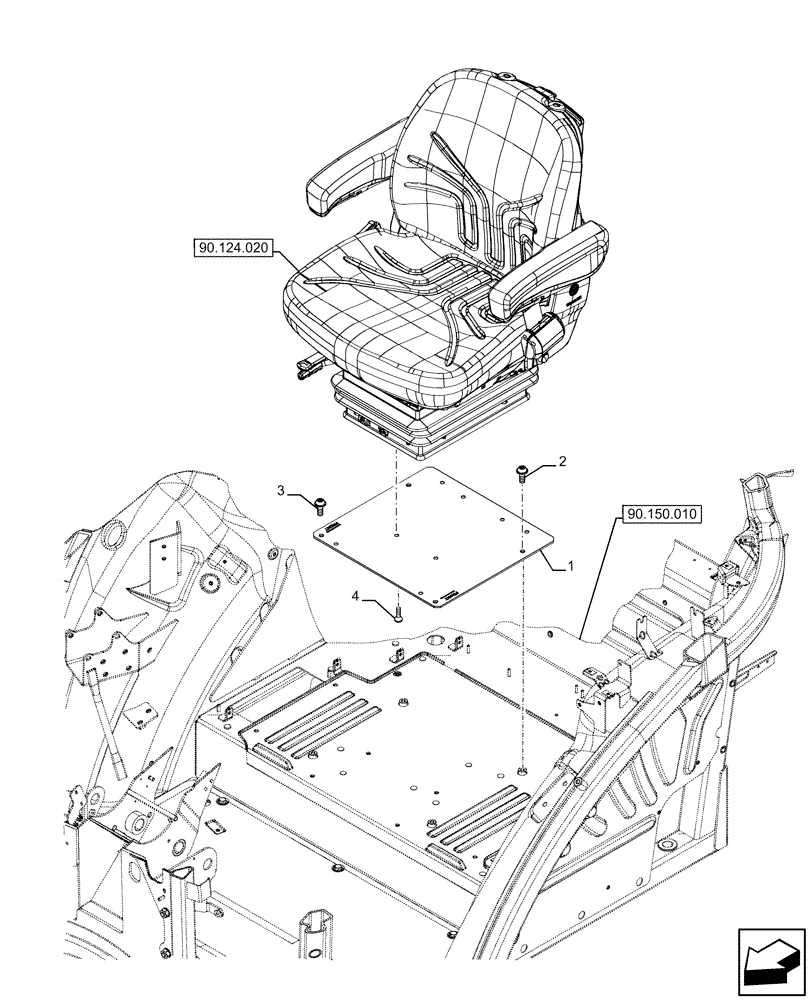

Схема запчастей Case IH FARMALL 120U - (90.124.010) - VAR - 332850 - DELUXE SUSPENSION SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.010
2
4
3
1
90.124.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47476146

DRIVER SEAT

ASSY

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Section, Subsection 55.512, 90.124, 90.151

1шт.

2

84469342

PLATE

1шт.

3

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

4шт.

4

14442024

SCREW,Flat Csk Hd, M8 x 1.25 x 20mm, Cl 8.8

4шт.

Выбрано товаров: 6
