(90.118.040) - VAR - 335130 - TELESCOPIC EXTERNAL REAR VIEW MIRROR

Запчасти Case IH FARMALL 120U (90.118.040) - VAR - 335130 - TELESCOPIC EXTERNAL REAR VIEW MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS

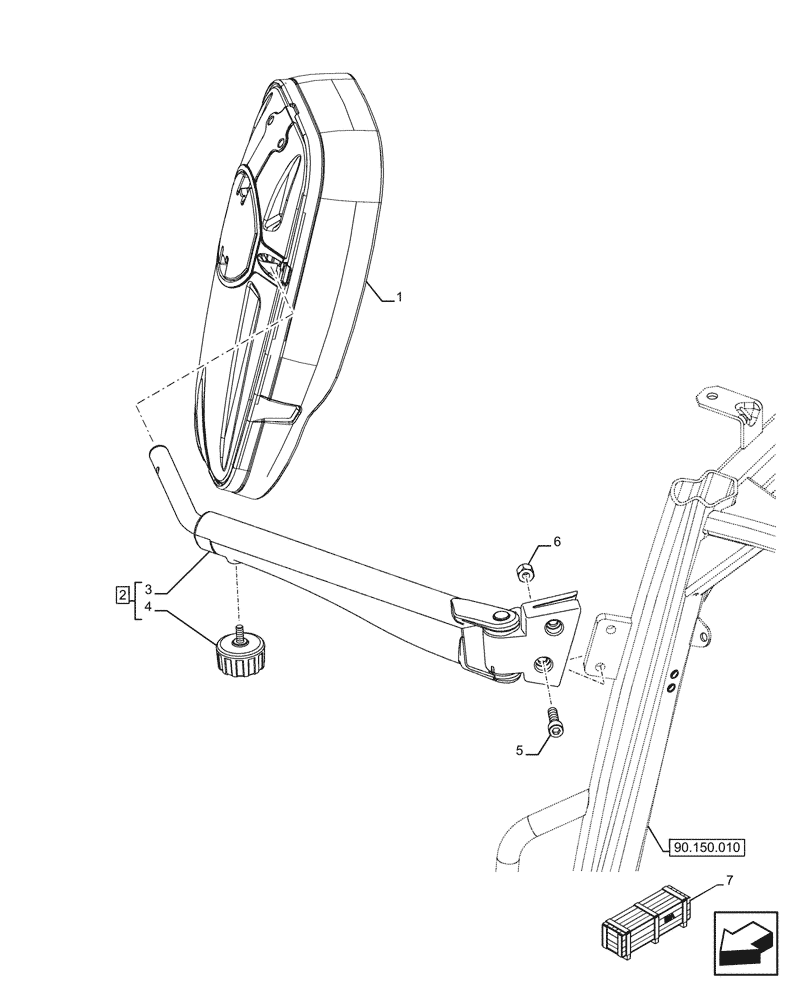

Схема запчастей Case IH FARMALL 120U - (90.118.040) - VAR - 335130 - TELESCOPIC EXTERNAL REAR VIEW MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.010
1
6
3
5
7
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47543444

MIRROR

LH

1шт.

1

47543441

MIRROR

RH

1шт.

2

87314381

MIRROR ARM

ASSY, LH, Incl 3, 4

1шт.

2

84398575

MIRROR ARM

ASSY, LH, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Telescopic, Incl in 2

1шт.

4

87365131

KNOB

1шт.

5

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

6

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.

7

718210010

DIA KIT, TRACTOR

Rear Wide Mirrors, Incl 1 - 6

1шт.
