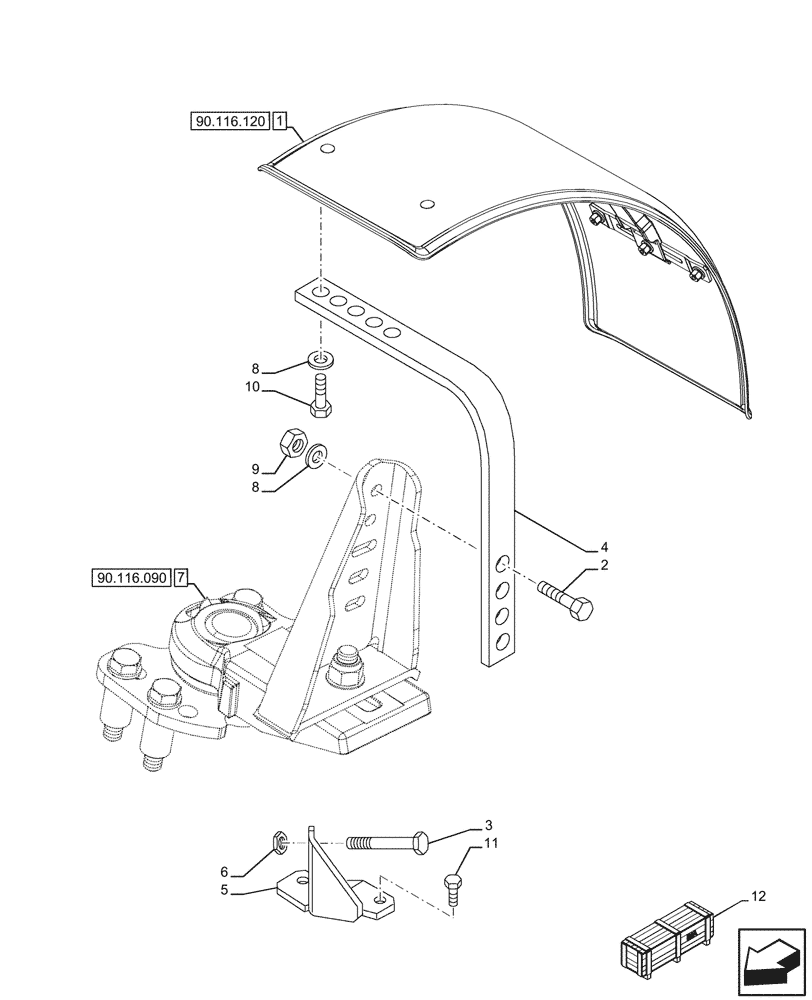

Запчасти Case IH FARMALL 120U (90.116.110) - VAR - 758330 - FRONT FENDER, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87600020

FRONT FENDER

ASSY

2шт.

2

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

4шт.

3

15233631

BOLT,Hex, M12 x 1.25 x 90mm, Cl 10.9, Full Thd

2шт.

4

82027913

SUPPORT

2шт.

5

87609919

BRACKET

LH

1шт.

5

87609920

BRACKET

RH

1шт.

6

16101521

NUT,M12 x 1.25, Cl 10

2шт.

7

87599488

SUPPORT

RH

1шт.

7

87599910

SUPPORT

LH

1шт.

8

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

8шт.

9

16105014

LOCK NUT,M12 x 1.25

4шт.

10

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

11

15540434

SCREW,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

12

718826070

DIA KIT, TRACTOR

Dynamic Front Fender, Incl 1 - 11

1шт.
