(90.116.060) - VAR - 331870 - REAR FENDER, NARROW, PROTECTION, SWITCH

Запчасти Case IH FARMALL 120U (90.116.060) - VAR - 331870 - REAR FENDER, NARROW, PROTECTION, SWITCH (90) - PLATFORM, CAB, BODYWORK AND DECALS

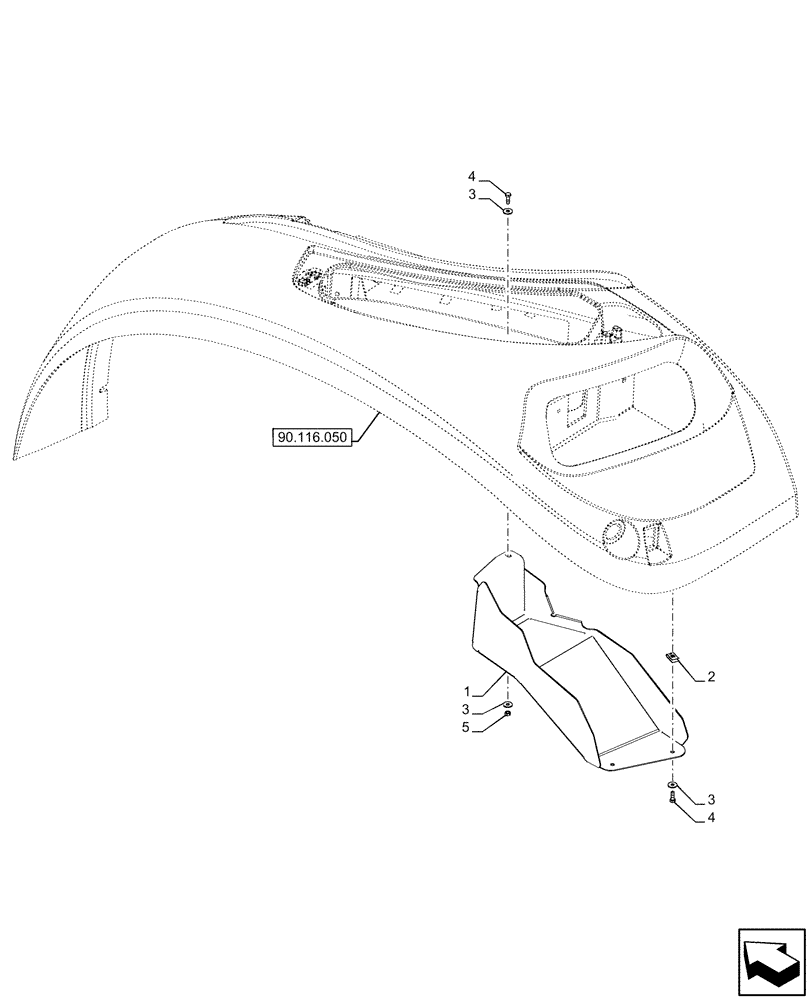

Схема запчастей Case IH FARMALL 120U - (90.116.060) - VAR - 331870 - REAR FENDER, NARROW, PROTECTION, SWITCH (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.116.050
2
4
5
1
3
3
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47632366

BRACKET

LH

1шт.

1

47632380

BRACKET

RH

1шт.

2

14371071

SPRING NUT,M5, 12mm W x 20.3mm OAL

2шт.

3

13577701

WASHER,5.15mm ID x 15mm OD x 1.2mm Thk

4шт.

4

10977834

BOLT,Hex, M5 x 16mm, Cl 10.9, Full Thd

3шт.

5

86509265

NUT,M5, Cl 10

1шт.
