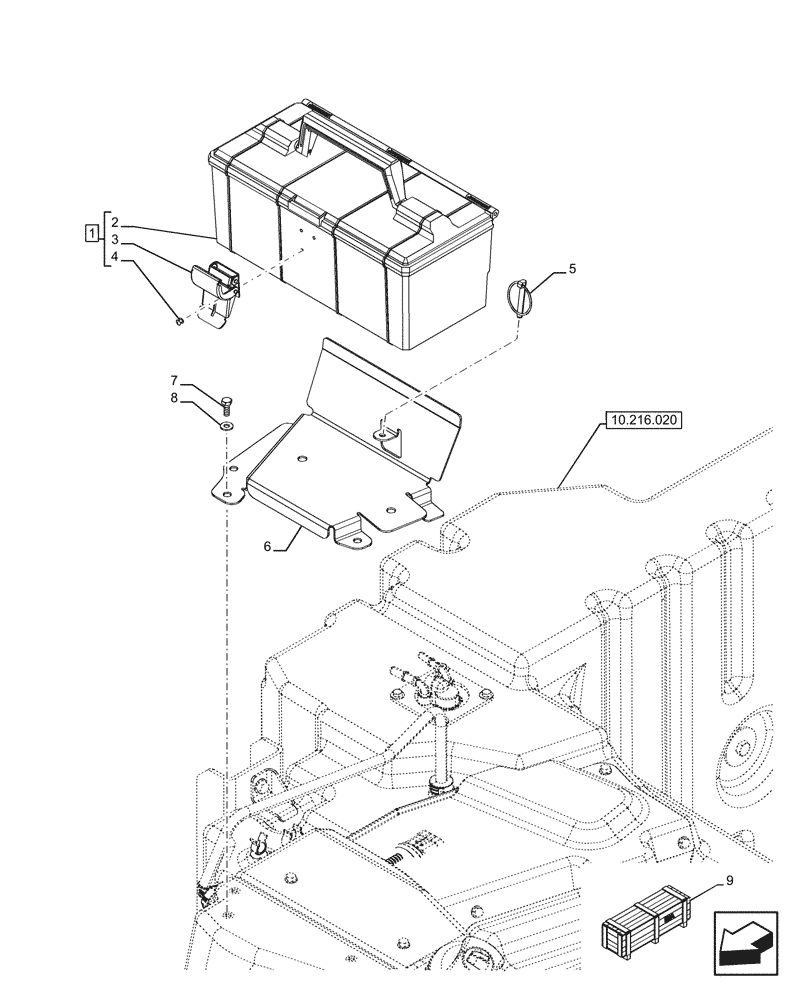

Запчасти Case IH FARMALL 120U (88.100.120) - VAR - 336795, 342003, 342004, 744712, 744713, 758980 - TOOL BOX, W/ LOADER READY (88) - ACCESSORIES

1

5137750

TOOL BOX

ASSY, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Tool Box, Incl in 1

1шт.

3

5135576

LATCH

1шт.

4

14641391

RIVET,Tr Hd, M3.2 x 8, Aluminum

3шт.

5

82013836

ROLL PIN,6mm OD

1шт.

6

47717576

BRACKET

1шт.

7

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

3шт.

8

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

9

718195060

DIA KIT, TRACTOR

Front Loader Bracket, Incl, 1 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
