(88.100.090[01]) - DIA KIT, BRACKET MONITOR EQUIPMENT

Запчасти Case IH FARMALL 120U (88.100.090[01]) - DIA KIT, BRACKET MONITOR EQUIPMENT (88) - ACCESSORIES

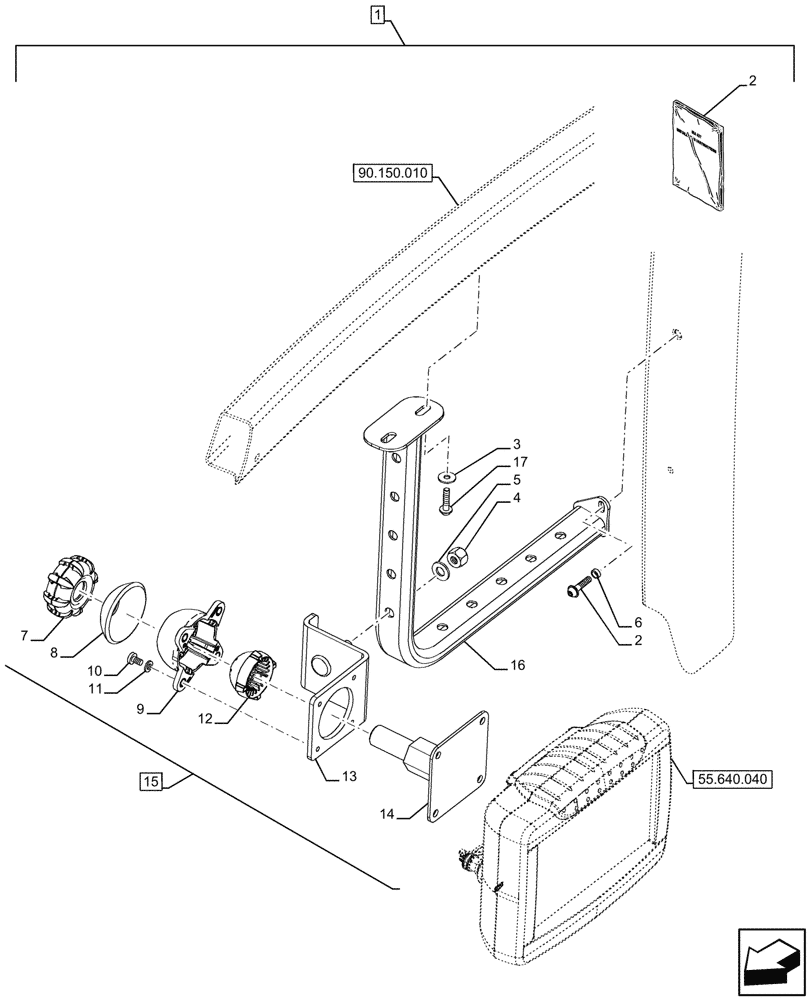

Схема запчастей Case IH FARMALL 120U - (88.100.090[01]) - DIA KIT, BRACKET MONITOR EQUIPMENT (88) - ACCESSORIES
90.150.010
8
4
13
5
15
7
6
1
9
16
10
11
12
3
14
2
2
17
55.640.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

718130060

DIA KIT, TRACTOR

Mounting Bracket for Equipment Monitor, Incl 2 - 17

1шт.

2

47811111

INSTRUCTION

1шт.

3

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

2шт.

4

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

5

14496611

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

6

47406348

SPACER,7mm ID x 9.5mm OD x 3.5mm L

1шт.

7

87316701

KNOB

1шт.

8

87316706

CUP,23mm ID x 68.6mm OD, Black

1шт.

9

87614602

BASE

1шт.

10

86585711

SCREW,Phillips Drive, Pan HD, M6 x 10mm, Cl 4.8

4шт.

11

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

12

87614603

CUP,Black

1шт.

13

87614600

BRACKET

1шт.

14

87565605

SUPPORT

1шт.

15

87614599

SUPPORT

ASSY, Incl 7 - 14

1шт.

16

47469903

ARM

1шт.

17

84375323

SCREW,Torx RWHD, M6 x 25mm, Cl 10.9, Full Thd, W/ Chem Lock

3шт.
