(88.100.055[03]) - DIA KIT, REVERSE ALARM, BRACKET

Запчасти Case IH FARMALL 120U (88.100.055[03]) - DIA KIT, REVERSE ALARM, BRACKET (88) - ACCESSORIES

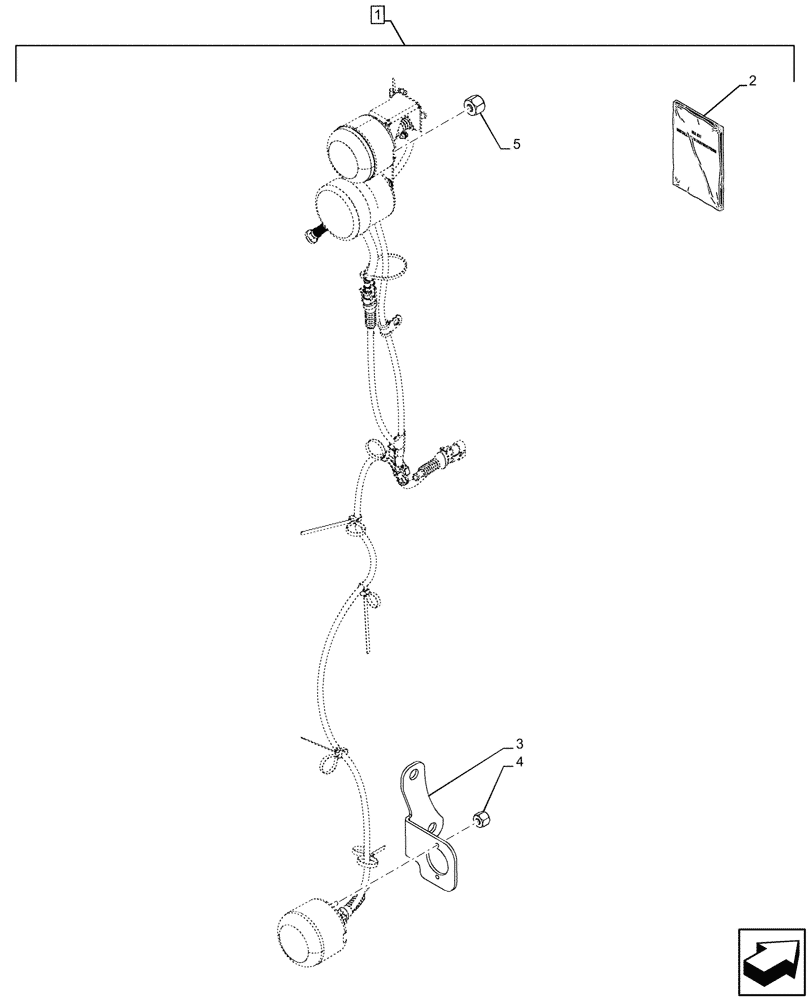

Схема запчастей Case IH FARMALL 120U - (88.100.055[03]) - DIA KIT, REVERSE ALARM, BRACKET (88) - ACCESSORIES
3
2
1
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

718825070

DIA KIT, TRACTOR

Reversing Alarm Buzzer and Light, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47672927

INSTRUCTION

1шт.

3

47604617

1шт.

4

12574215

NUT,M6 x 1, Cl 8

1шт.

5

12574211

NUT,M6 x 1, Cl 8

1шт.

Выбрано товаров: 6
