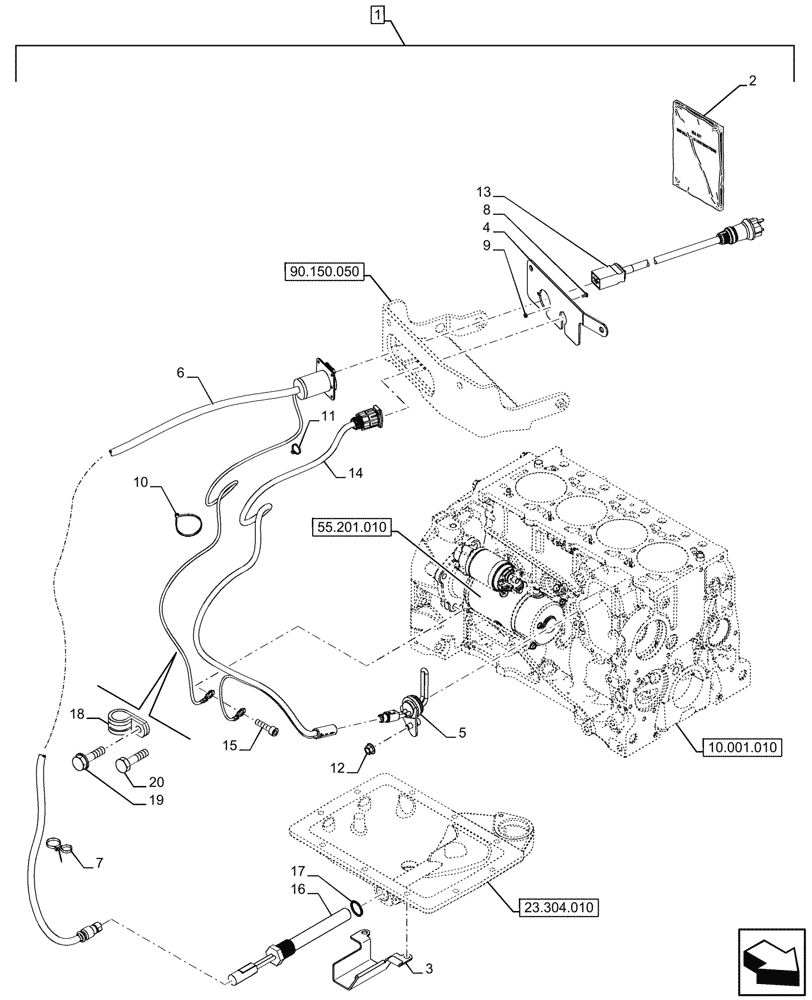

Запчасти Case IH FARMALL 120U (88.100.055[02]) - DIA KIT, COLD START SYSTEM, BLOCK HEATER (240V) (88) - ACCESSORIES

1

718085010

DIA KIT, TRACTOR

Engine Block Heater and Transmission Oil Heater, Incl 2 - 20

1шт.

2

47668360

INSTRUCTION

1шт.

3

47527977

SHIELD

1шт.

4

47491103

BRACKET

1шт.

5

87719400

HEATER,820W - 230V

1шт.

6

47528327

WIRE HARNESS

1шт.

7

82013031

CABLE TIE,193mm L

3шт.

8

13271914

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 5.8, Full Thd

2шт.

9

10794011

NUT,M4, Cl 8

2шт.

10

14560187

COLLAR,199mm L

3шт.

11

14560087

CABLE TIE,103mm, Black

4шт.

12

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

13

47541050

WIRE HARNESS

1шт.

14

47576907

ELECTRIC CABLE

1шт.

15

14420421

HEX SOC SCREW,M10 x 40mm, Cl 8.8, Full Thd

1шт.

16

82030789

HEATER,240V

1шт.

17

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

18

10441590

CLAMP,16mm, Coat, P Type

1шт.

19

16285924

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8, Full Thd

1шт.

20

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

2шт.
