Запчасти Case IH FARMALL 120U (88.100.037[11]) - DIA KIT, FRONT, 3 POINT HITCH, SUPPORT, PLATE (88) - ACCESSORIES

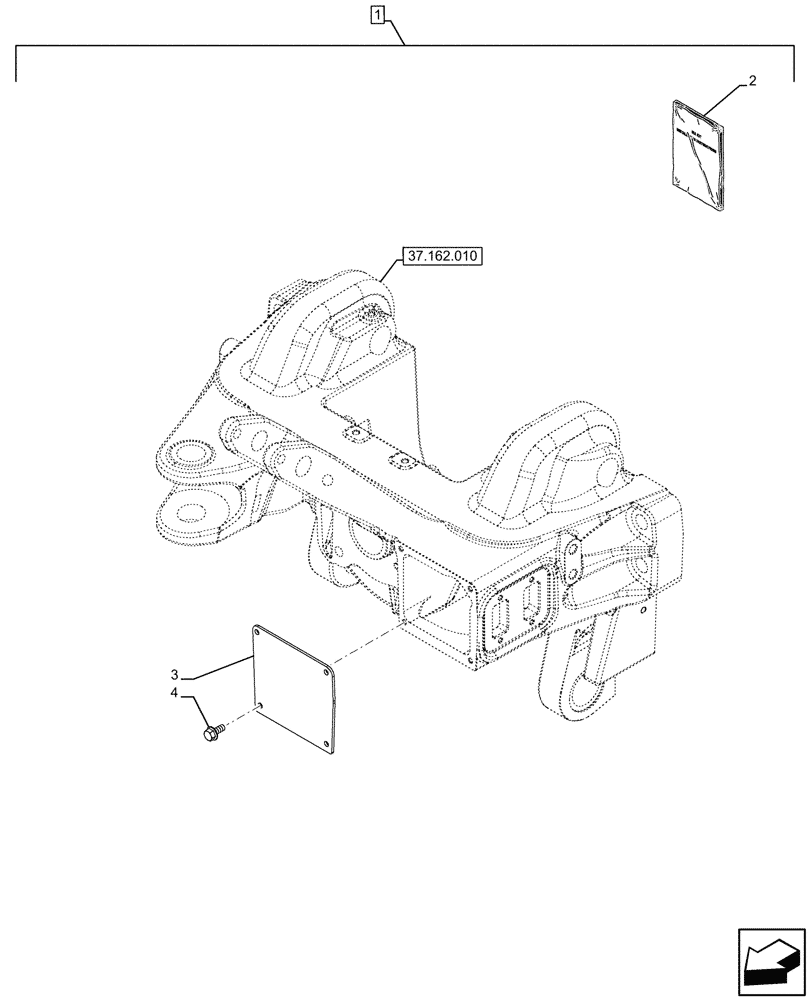

Схема запчастей Case IH FARMALL 120U - (88.100.037[11]) - DIA KIT, FRONT, 3 POINT HITCH, SUPPORT, PLATE (88) - ACCESSORIES
37.162.010
4
1
3
2

Артикул

Название

Примечание

Количество

1

718090010

DIA KIT, TRACTOR

Chassis Mounted D/A less FPTO for Standard Front Axle, Incl 2 - 4

1шт.

To See Full KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47668383

INSTRUCTION

1шт.

3

84529951

COVER PLATE

1шт.

4

16296924

FLANGE BOLT,Hvy Hex, M6 x 14mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 5
