(88.100.037[09]) - DIA KIT, FRONT, 3 POINT HITCH, SUPPORT, PLATE

Запчасти Case IH FARMALL 120U (88.100.037[09]) - DIA KIT, FRONT, 3 POINT HITCH, SUPPORT, PLATE (88) - ACCESSORIES

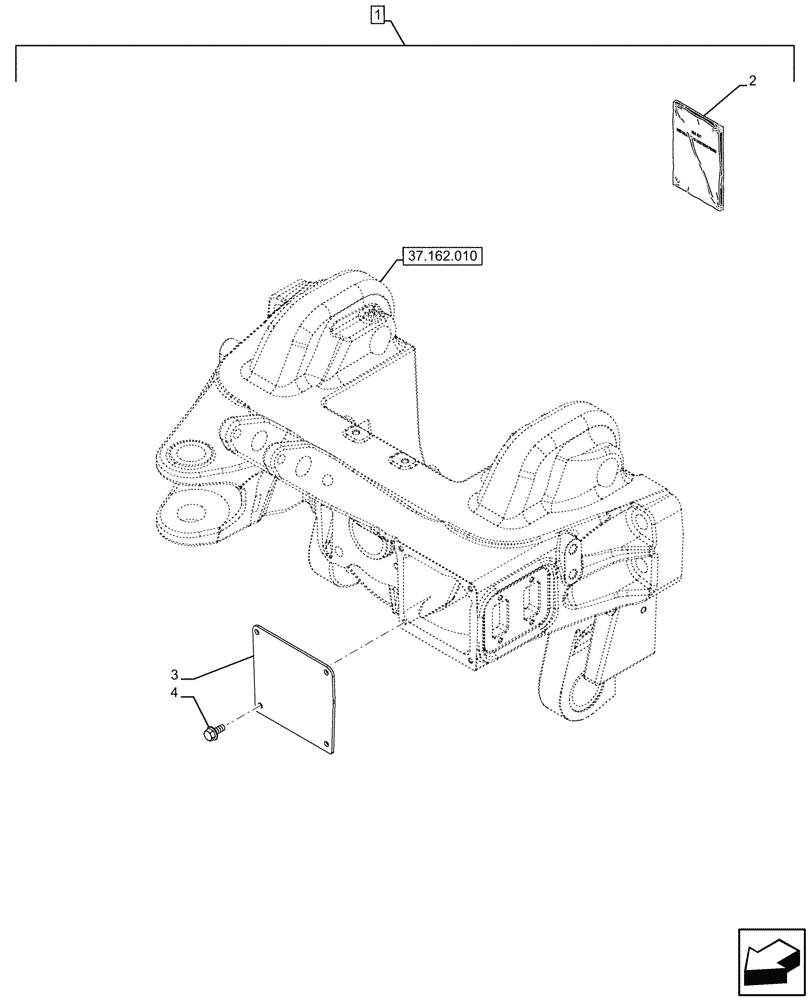

Схема запчастей Case IH FARMALL 120U - (88.100.037[09]) - DIA KIT, FRONT, 3 POINT HITCH, SUPPORT, PLATE (88) - ACCESSORIES
37.162.010
1
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

718235020

DIA KIT, TRACTOR

Chassis Mounted D/A less FPTO F/Suspended Front Axle, Incl 2 - 4

1шт.

To See Full KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47793267

INSTRUCTION

1шт.

3

84529951

COVER PLATE

1шт.

4

16296924

FLANGE BOLT,Hvy Hex, M6 x 14mm, Cl 8.8, Full Thd

4шт.
