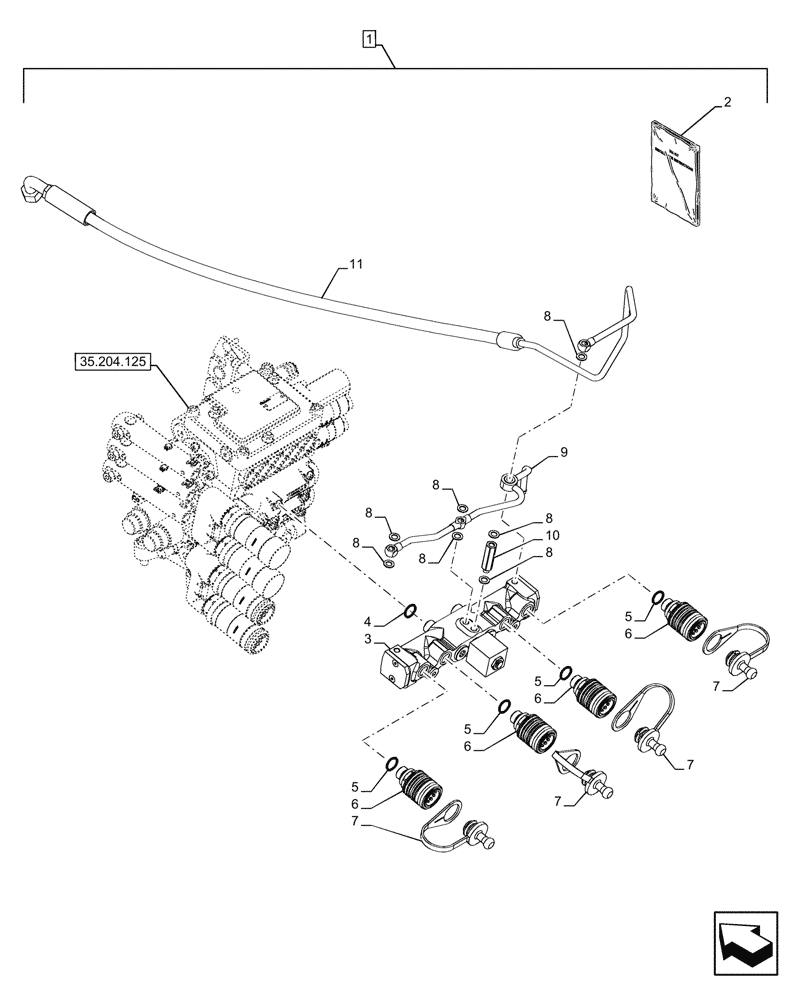

Запчасти Case IH FARMALL 120U (88.100.035[07]) - DIA KIT, 3REMOTE CONTROL VALVE, MANIFOLD VALVE (88) - ACCESSORIES

1

710312070

DIA KIT, TRACTOR

Diverter - for 3 Remotes, Incl 2 - 11

1шт.

To See Full KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47705538

INSTRUCTION

1шт.

3

47131019

BODY

1шт.

4

14457480

O-RING,18.72mm ID x 2.62mm Thk , -116, Cl 5

2шт.

5

14437985

O-RING,15.3mm ID x 2.4mm

4шт.

6

5179556

COUPLING, QUICK, FEM,Hex, M18 x 1.5 x 63.3mm L

4шт.

7

5179578

PLUG,24mm, Brown

4шт.

8

10260060

SEALING WASHER,8.2mm ID x 14mm OD x 1mm Thk

8шт.

9

47793057

PIPE

1шт.

10

5179506

PROP,M8 x 1.25

1шт.

11

47792443

PIPE

1шт.
