Запчасти Case IH FARMALL 120U (88.100.035[05]) - DIA KIT, REMOTE CONTROL VALVE, PIPE, MULTIFASTER COUPLER (88) - ACCESSORIES

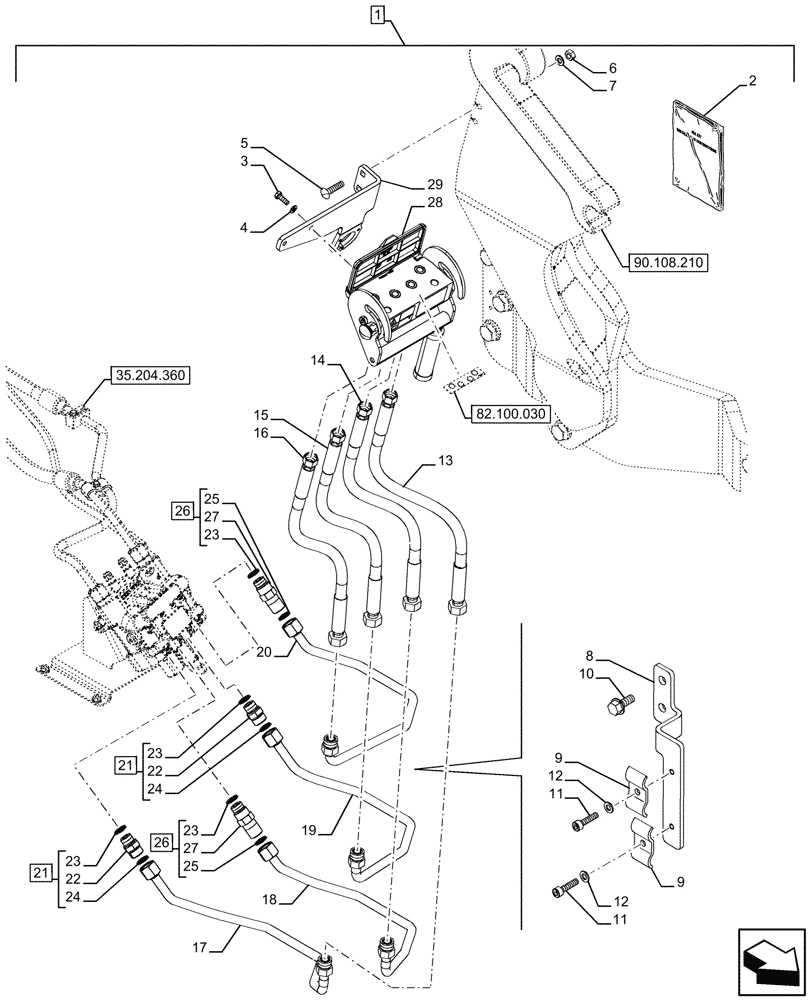

Схема запчастей Case IH FARMALL 120U - (88.100.035[05]) - DIA KIT, REMOTE CONTROL VALVE, PIPE, MULTIFASTER COUPLER (88) - ACCESSORIES
90.108.210
18
19
7
10
21
14
2
8
11
9
11
22
28
29
22
24
23
9
23
26
12
25
27
4
5
21
20
26
17
23
3
25
12
1
16
24
23
27
6
13
15
82.100.030
35.204.360

Артикул

Название

Примечание

Количество

1

718240010

DIA KIT, TRACTOR

Pipes KIT for 60Lt Mechanical Mid Mount Valve, Incl 2 - 29

1шт.

To See Full KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47799742

INSTRUCTION

1шт.

3

86625001

BOLT,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

4

84188434

WASHER,8.4mm ID x 16mm OD x 1.6mm Thk

2шт.

5

87682395

CARRIAGE BOLT,Short Sq Nk, M10 x 1.5 x 45mm, Cl 10.9

2шт.

6

100016

NUT,M10 x 1.5, Cl 8

2шт.

7

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

2шт.

8

47629614

BRACKET

1шт.

9

44906584

RETAINER COLLAR,12mm ID

2шт.

10

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

11

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

2шт.

12

11194374

WASHER,Belleville, 6.4mm ID x 12mm OD

2шт.

13

47714480

HOSE

Loader Bucket Tip

1шт.

14

47714479

HOSE

Loader Bucket Scoop

1шт.

15

47714478

HOSE

Loader Raise

1шт.

16

47714477

HOSE

Loader Lower

1шт.

17

47714470

PIPE

from Inching Valve to Hydraulic Multifaster

1шт.

18

47714468

PIPE

from Inching Valve to Hydraulic Multifaster

1шт.

19

47714466

PIPE

from Inching Valve to Hydraulic Multifaster

1шт.

20

47714456

PIPE

from Inching Valve to Hydraulic Multifaster

1шт.

21

5185561

HYD CONNECTOR,Straight, M18 x 1.5 UN/UNF, 13/16"-16" ORFS

ASSY, Incl 22, 23 (Qty 1), 24

2шт.

22

NSS

NOT SOLD SEPARAT

Connector, Incl in 21

1шт.

23

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

2шт.

24

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

25

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.

26

87304603

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

ASSY, Incl 23 (Qty 1), 25, 27

2шт.

27

NSS

NOT SOLD SEPARAT

Connector, Incl in 26

1шт.

28

47629611

HYD CONNECTOR

Hydraulic Multifaster

1шт.

29

47629613

BRACKET

1шт.

Выбрано товаров: 30
