(88.100.035[01]) - DIA KIT, JOYSTICK, MID-MOUNT CONTROL VALVE

Запчасти Case IH FARMALL 120U (88.100.035[01]) - DIA KIT, JOYSTICK, MID-MOUNT CONTROL VALVE (88) - ACCESSORIES

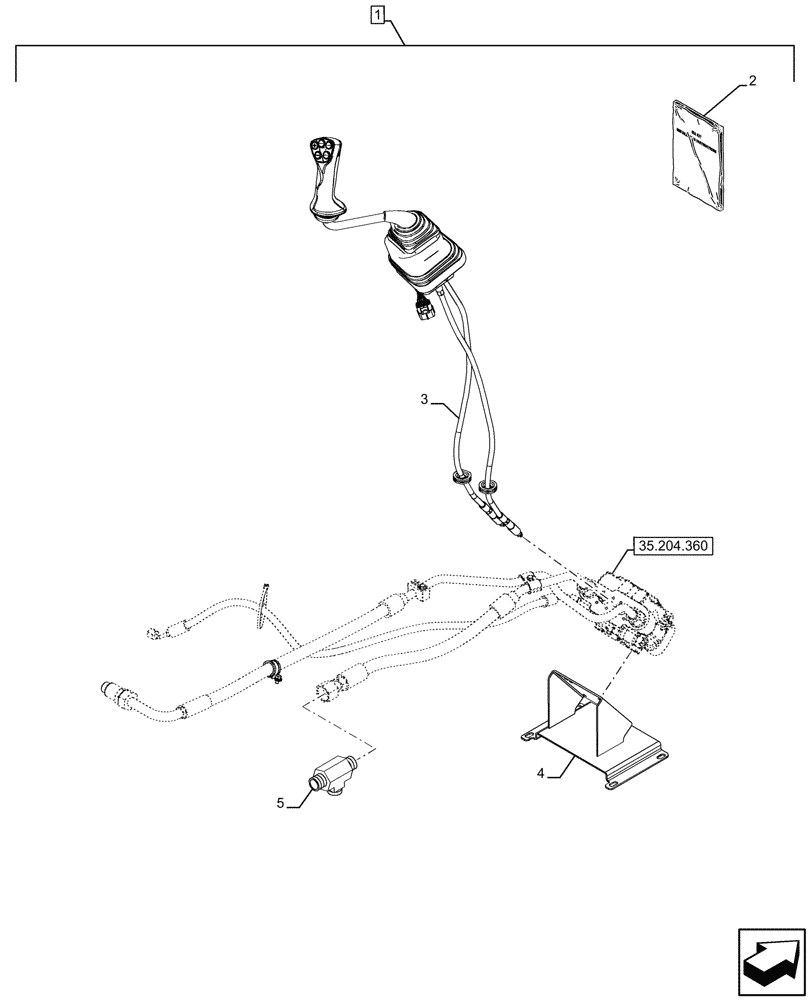

Схема запчастей Case IH FARMALL 120U - (88.100.035[01]) - DIA KIT, JOYSTICK, MID-MOUNT CONTROL VALVE (88) - ACCESSORIES
35.204.360
3
5
4
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

719302090

DIA KIT, TRACTOR

Load Sensing Mid Mount Valve, Rear, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47801039

INSTRUCTION

1шт.

3

47926454

JOYSTICK

1шт.

4

47956121

BRACKET

1шт.

5

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

1шт.

Выбрано товаров: 6
