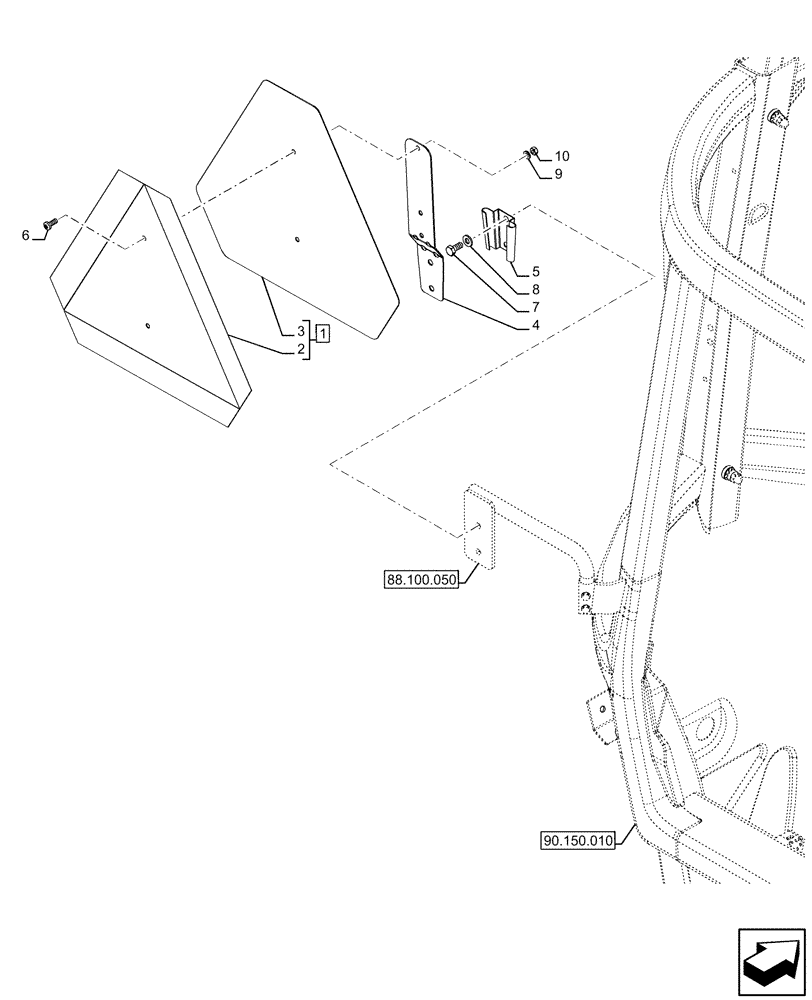

Запчасти Case IH FARMALL 120U (88.100.010) - WARNING TRIANGLE, HIGH PROFILE ROOF (88) - ACCESSORIES

1

86547710

EMBLEM

ASSY, Incl 2, 3

1шт.

2

86547711

DECAL,SMV

1шт.

3

86547712

PLATE

1шт.

4

5148516

BRACKET

1шт.

5

5148517

SUPPORT

1шт.

6

13276214

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

2шт.

7

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

8

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

9

14499304

WASHER,6.4mm ID x 11mm OD x 1.6mm Thk

2шт.

10

15896214

NUT,M6, Cl 8

2шт.
