(55.988.010) - VAR - 390210 - DEF/ADBLUE™ TANK, LEVEL, SENSOR

Запчасти Case IH FARMALL 120U (55.988.010) - VAR - 390210 - DEF/ADBLUE™ TANK, LEVEL, SENSOR (55) - ELECTRICAL SYSTEMS

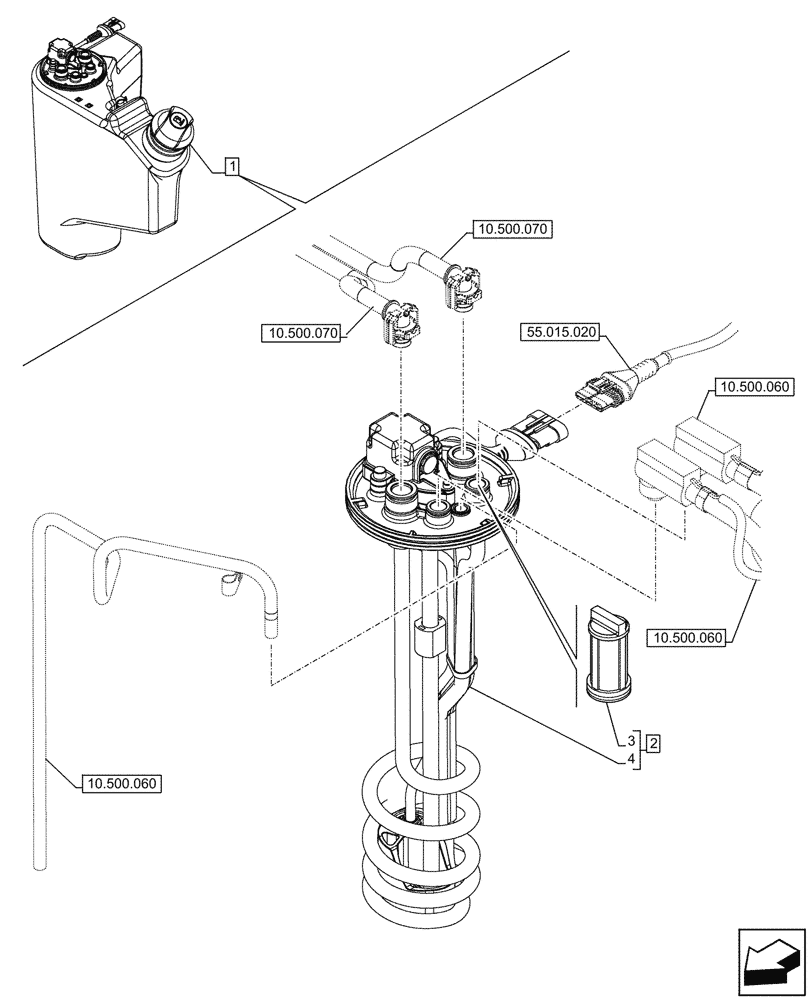

Схема запчастей Case IH FARMALL 120U - (55.988.010) - VAR - 390210 - DEF/ADBLUE™ TANK, LEVEL, SENSOR (55) - ELECTRICAL SYSTEMS
10.500.070
3
1
2
4
10.500.060
10.500.060
10.500.060
55.015.020
10.500.070
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47844777

TANK

ASSY, Incl 2

1шт.

See also Figure 10.500.080

1шт.

2

47664483

SENDER UNIT

ASSY, Incl 3 - 4

1шт.

3

47674634

FILTER,11.2mm OD x 22.7 L, 70 Microns

1шт.

4

NSS

NOT SOLD SEPARAT

Sender Unit, Incl in 2

1шт.
