(55.523.020) - VAR - 332703, 334703, 335703 - REAR ELECTRONIC LIFT, CONTROL PANEL, WITH RADAR

Запчасти Case IH FARMALL 120U (55.523.020) - VAR - 332703, 334703, 335703 - REAR ELECTRONIC LIFT, CONTROL PANEL, WITH RADAR (55) - ELECTRICAL SYSTEMS

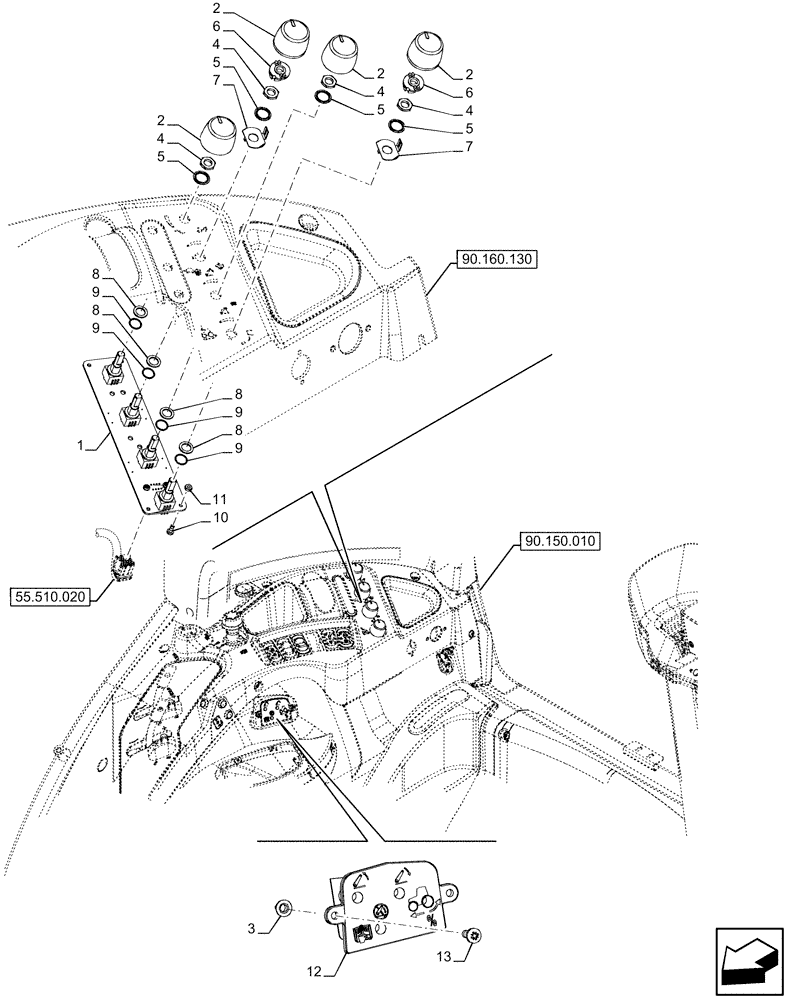

Схема запчастей Case IH FARMALL 120U - (55.523.020) - VAR - 332703, 334703, 335703 - REAR ELECTRONIC LIFT, CONTROL PANEL, WITH RADAR (55) - ELECTRICAL SYSTEMS
90.150.010
12
8
6
3
2
1
11
6
4
9
5
2
13
8
9
2
4
9
5
7
8
4
7
5
10
9
5
2
4
8
55.510.020
90.160.130
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47587152

CONTROL PANEL

1шт.

2

86018882

KNOB

4шт.

3

14084011

FLANGE NUT,M4 x .7, Flg

2шт.

4

47677527

NUT,Hex, M8 x 0.75, Cl 8.8

4шт.

5

47677531

WASHER,10.2mm ID x 14mm OD x 1.1mm Thk

4шт.

6

86018881

WASHER

2шт.

7

47470705

LOCKING PLATE

2шт.

8

14330260

SEALING WASHER,M8.2 x 12 x 1

4шт.

9

47677549

RUBBER SEAL,9.5mm ID x 12.5mm OD x 1.2mm Thk

4шт.

10

13270411

SCREW,Cross Rec Pan Hd, M3 x 8mm

4шт.

11

16101711

NUT,M3, Cl 8

4шт.

12

87515709

PANEL

1шт.

13

13272024

SCREW,Pozidriv Pan Hd, M4 x 12mm, Cl 8.8, Full Thd

2шт.
