(55.518.050) - VAR - 331444, 332147, 336730, 339434 - WINDSHIELD WASH RESERVOIR, FRONT, REAR

Запчасти Case IH FARMALL 120U (55.518.050) - VAR - 331444, 332147, 336730, 339434 - WINDSHIELD WASH RESERVOIR, FRONT, REAR (55) - ELECTRICAL SYSTEMS

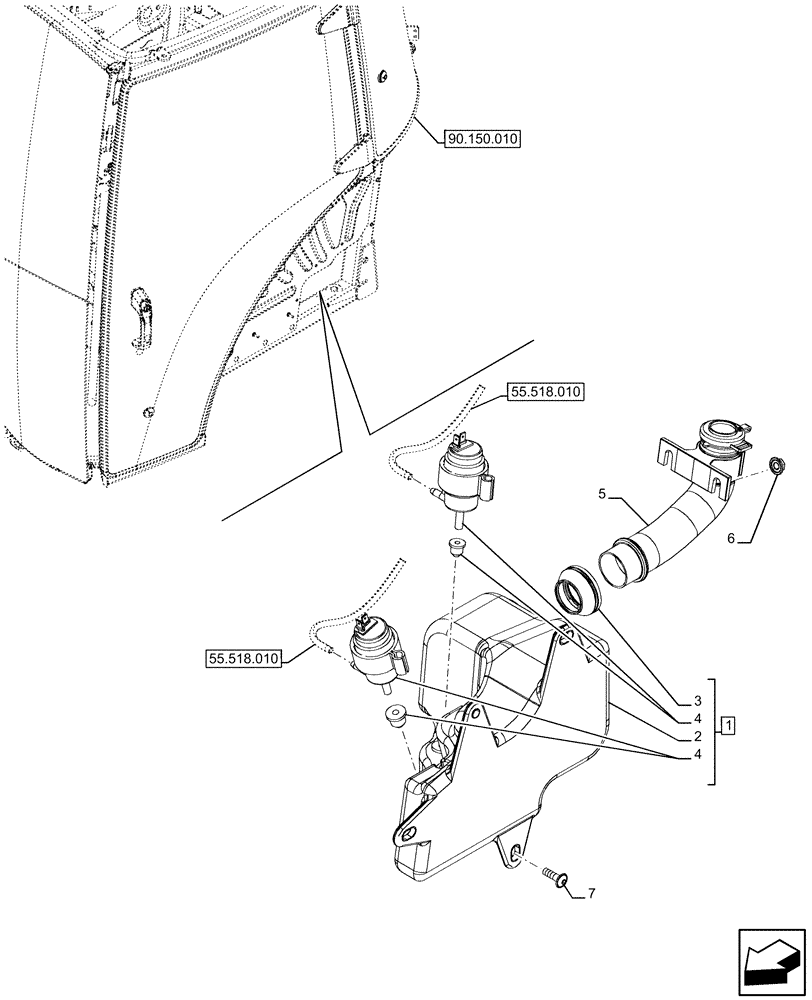

Схема запчастей Case IH FARMALL 120U - (55.518.050) - VAR - 331444, 332147, 336730, 339434 - WINDSHIELD WASH RESERVOIR, FRONT, REAR (55) - ELECTRICAL SYSTEMS
90.150.010
4
4
2
3
5
7
6
1
55.518.010
55.518.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47543436

TANK

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Reservoir, Incl in 1

1шт.

3

47585134

GROMMET

1шт.

4

NSS

NOT SOLD SEPARAT

Washer Engine, Incl in 1

1шт.

5

47554151

HOSE

1шт.

6

13046111

LOCK NUT,Flg Lock, M6

2шт.

7

87698793

SCREW,Hex, M6 x 20mm L

4шт.
