Запчасти Case IH FARMALL 120U (55.512.110) - VAR - 758312 - SWITCH, ELECTRIC CABLE, SEAT, PREMIUM, EHR, JOYSTICK (55) - ELECTRICAL SYSTEMS

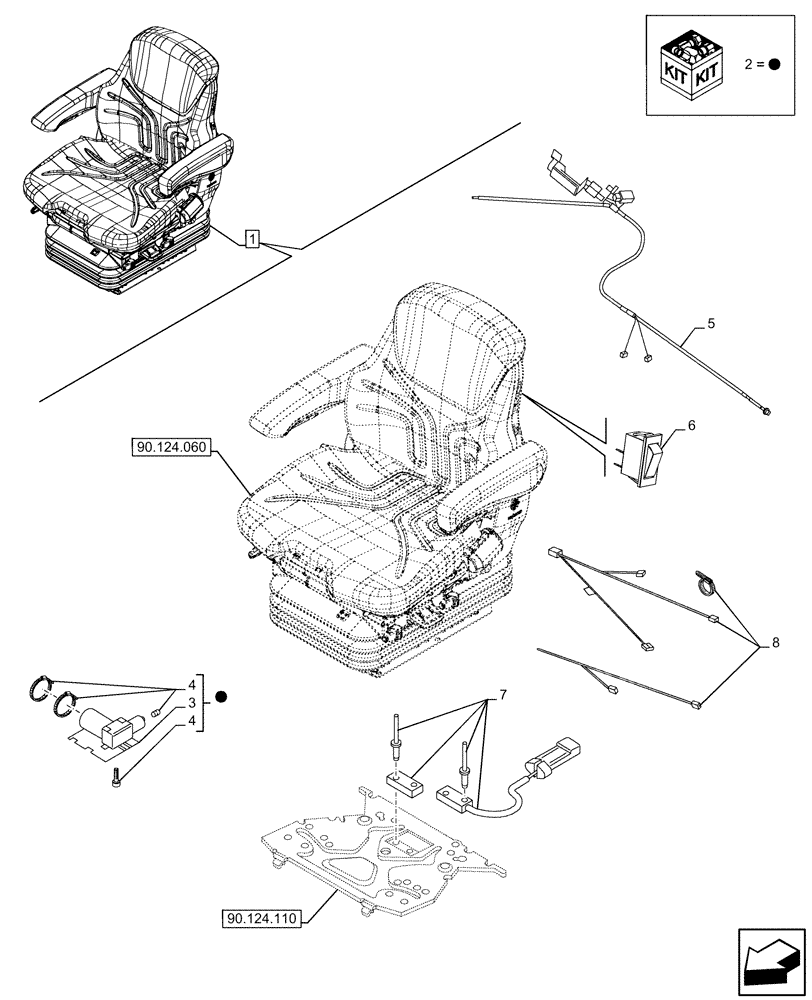

Схема запчастей Case IH FARMALL 120U - (55.512.110) - VAR - 758312 - SWITCH, ELECTRIC CABLE, SEAT, PREMIUM, EHR, JOYSTICK (55) - ELECTRICAL SYSTEMS
90.124.110
5
4
2
8
4
1
6
3
7
2
90.124.060

Артикул

Название

Примечание

Количество

1

47488669

DRIVER SEAT

ASSY, Incl 2 - 8

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Section, Subsection 55.512, 90.124, 90.151

1шт.

2

84190980

AIR COMPRESSOR

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Air Compressor, Incl in 2

1шт.

4

84191008

REPAIR KIT

1шт.

5

84191074

WIRE HARNESS

1шт.

6

84223027

SWITCH

Heater

1шт.

7

84525783

SWITCH

Mechanical Seat

1шт.

8

84191207

KIT

1шт.

Выбрано товаров: 10
