(55.512.100) - VAR - 332850 - SWITCH, ELECTRIC CABLE, DELUXE SUSPENSION SEAT

Запчасти Case IH FARMALL 120U (55.512.100) - VAR - 332850 - SWITCH, ELECTRIC CABLE, DELUXE SUSPENSION SEAT (55) - ELECTRICAL SYSTEMS

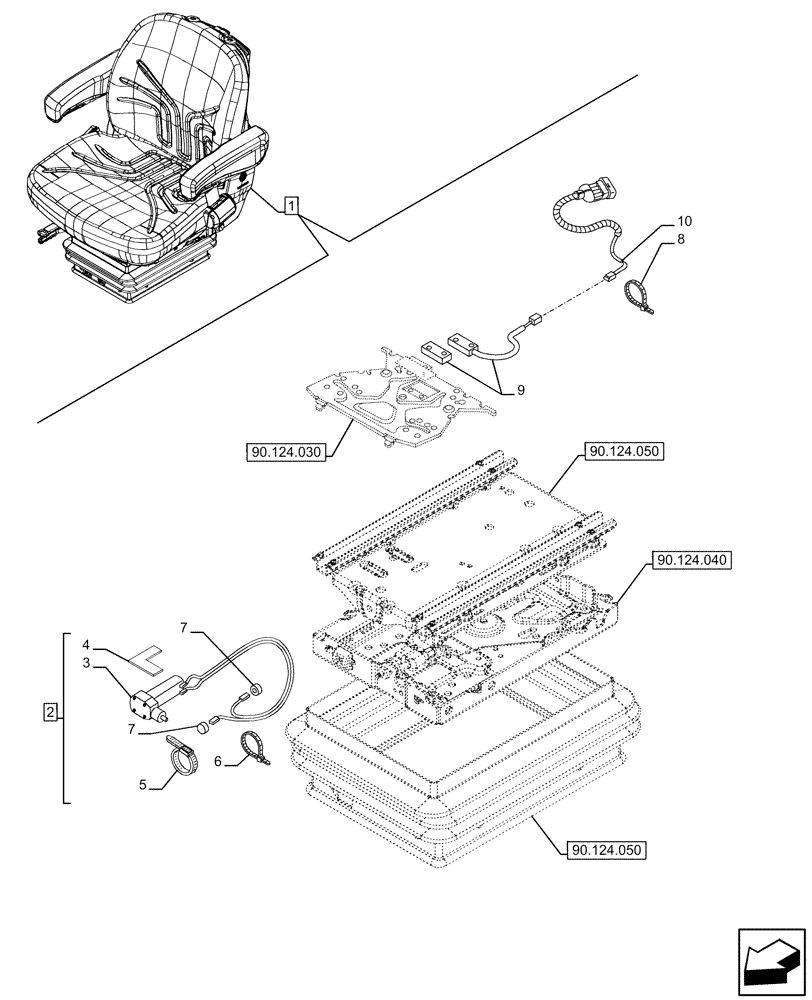

Схема запчастей Case IH FARMALL 120U - (55.512.100) - VAR - 332850 - SWITCH, ELECTRIC CABLE, DELUXE SUSPENSION SEAT (55) - ELECTRICAL SYSTEMS
90.124.050
10
6
8
3
7
5
2
7
4
1
9
90.124.030
90.124.040
90.124.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47476146

DRIVER SEAT

ASSY, Incl 2 - 10

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Section, Subsection 55.512, 90.124, 90.151

1шт.

2

87331939

AIR COMPRESSOR KIT

ASSY, Incl 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

Compressor, Incl in 2

1шт.

4

84171558

PLATE

1шт.

5

84171410

WIRE CLAMP

2шт.

6

87567529

CABLE TIE,200mm L

2шт.

7

87331945

FERRULE

2шт.

8

82035055

CABLE TIE,M4.7 x 204

1шт.

9

84487915

SWITCH

1шт.

10

9971521

KIT

1шт.
