Запчасти Case IH FARMALL 120U (55.512.080) - VAR - 758821 - ELECTRONIC CONTROLS, JOYSTICK (55) - ELECTRICAL SYSTEMS

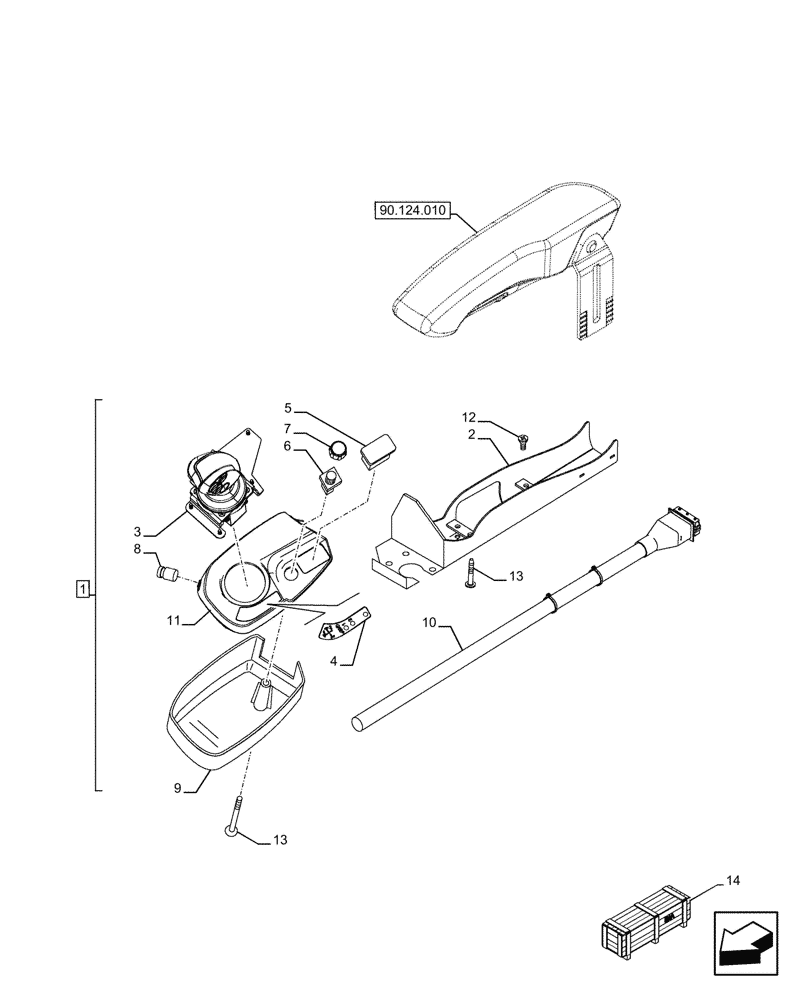

Схема запчастей Case IH FARMALL 120U - (55.512.080) - VAR - 758821 - ELECTRONIC CONTROLS, JOYSTICK (55) - ELECTRICAL SYSTEMS
90.124.010
12
4
14
1
8
5
11
2
13
7
3
13
10
6
9

Артикул

Название

Примечание

Количество

1

47907085

CONTROL UNIT

ASSY, Incl 2 - 12

1шт.

2

47471120

BRACKET

1шт.

3

47889122

JOYSTICK

1шт.

4

47872775

DECAL

1шт.

5

82022763

PLUG

1шт.

6

47471136

POTENTIOMETER

1шт.

7

47471144

KNOB

1шт.

8

47471146

BUTTON

1шт.

9

47471167

SHELL

1шт.

10

47471172

ELEC CONNECTOR

1шт.

11

NSS

NOT SOLD SEPARAT

Shell Up, Incl in 1

1шт.

12

47471181

SET OF SCREWS

1шт.

13

47446819

SCREW,Torx, BTN HD, M6 x 42mm

4шт.

14

718196070

DIA KIT, TRACTOR

Electrohydraulic Mid Mount with Electronic Joystick, Incl 1 - 13

1шт.

To See Full KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
