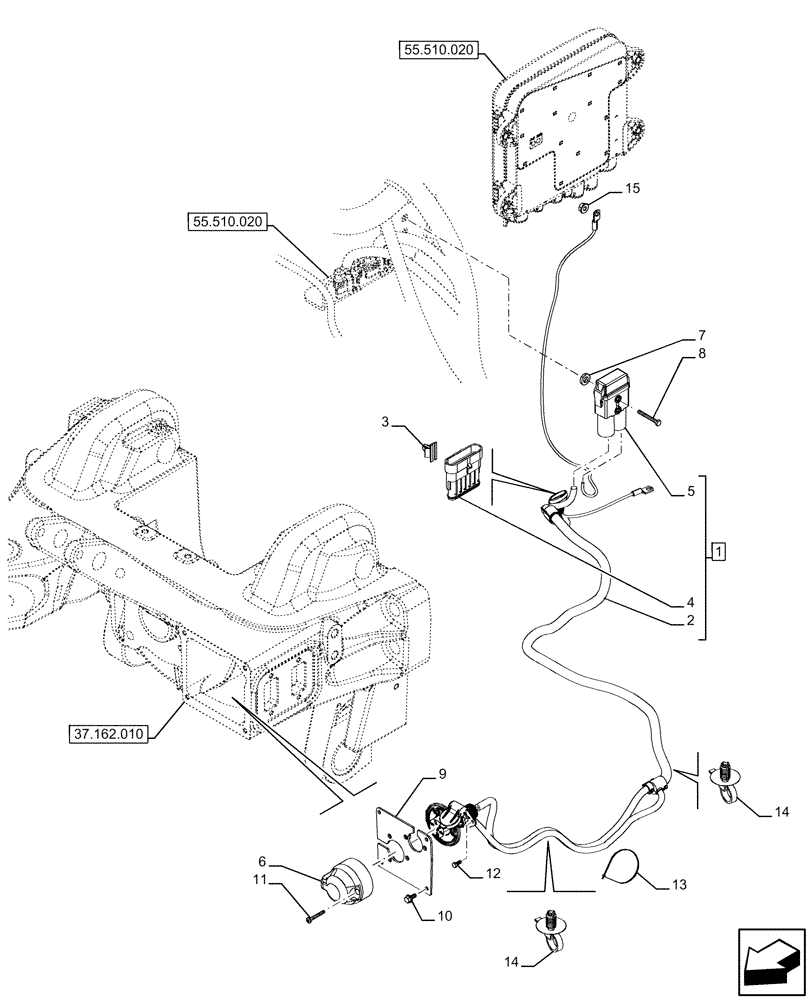

Запчасти Case IH FARMALL 120U (55.510.080) - VAR - 330622 - ELECTRICAL SOCKET, FRONT, EU (55) - ELECTRICAL SYSTEMS

1

47710255

WIRE HARNESS

Way Socket Front, ASSY, Incl 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

3

84161552

CLIP,6.5mm OD, Black

1шт.

4

87691968

ELEC CONNECTOR,Female, 6 Cavities

1шт.

5

84247657

FUSE HOLDER

1шт.

6

5102156

MULTIPOLE CONNECTOR,Female, 7 Pole

1шт.

7

12648400

WASHER,8.15mm ID x 15mm OD x 3mm Thk

2шт.

8

15210624

BOLT,Hex, M4 x 35mm, Cl 8.8, Full Thd

2шт.

9

47523635

CONTACT PLATE

1шт.

10

16296924

FLANGE BOLT,Hvy Hex, M6 x 14mm, Cl 8.8, Full Thd

4шт.

11

13274914

SCREW,Pan, M5 x 35mm L

3шт.

12

86632597

BOLT,M5 x 0.8 x 15.65mm, Cl 8.8

2шт.

13

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

10шт.

14

82033028

CABLE TIE,170mm L

3шт.

15

14059311

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.
