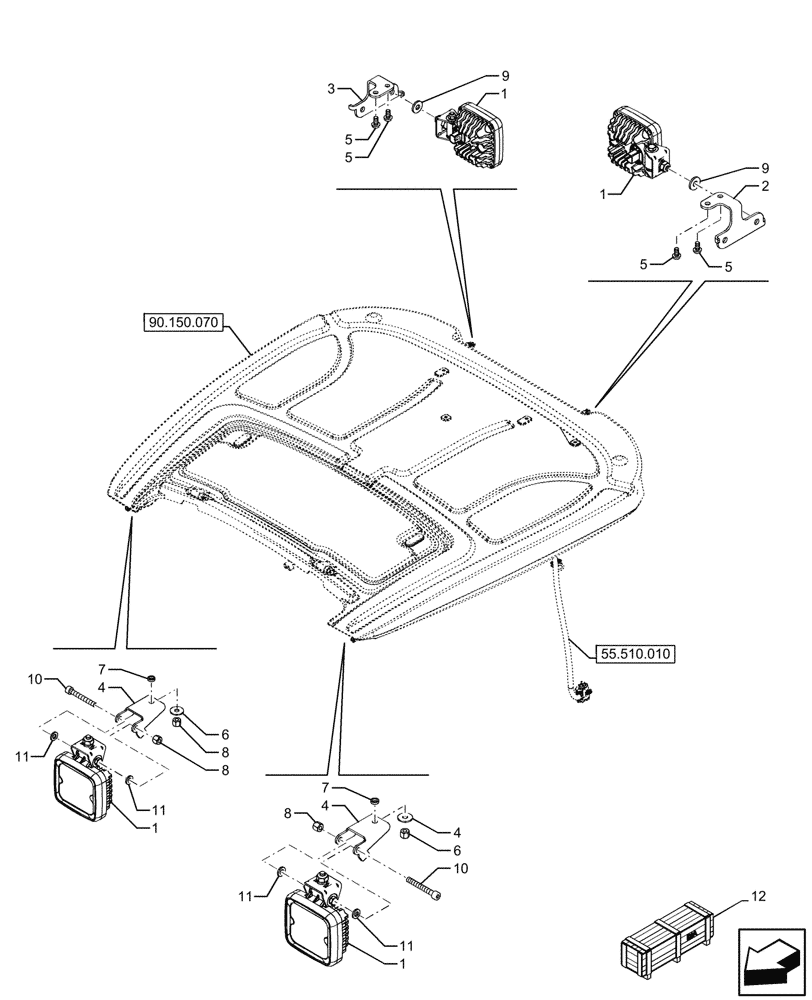

Запчасти Case IH FARMALL 120U (55.404.220) - VAR - 337132 - WORKING LIGHT (55) - ELECTRICAL SYSTEMS

1

47772876

WORK LAMP

4шт.

2

47866666

BRACKET

LH

1шт.

3

47866663

BRACKET

RH

1шт.

4

47794298

BRACKET

Black

2шт.

5

84187810

SCREW,Torx Pan Hd, M8 x 16mm, Cl 8.8

4шт.

6

13578301

WASHER,8.15mm ID x 24mm OD x 2mm Thk

2шт.

7

87360034

SPACER,8.48mm ID x 12.7mm OD x 3.5mm L

2шт.

8

16104121

NUT,M8 x 1.25, Cl 10

4шт.

9

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

2шт.

10

14308934

HEX SOC SCREW,M8 x 1.25 x 60mm, Cl 10.9

2шт.

11

11197874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 2.2mm Thk

4шт.

12

718077020

DIA KIT, TRACTOR

4 Led Worklights, Incl 1 - 11

1шт.

12

718079020

DIA KIT, TRACTOR

4 Led Worklights Plus 2 Road Lights, Incl 1 - 11

1шт.

To See Full KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

12

718078020

DIA KIT, TRACTOR

4 Led Worklights Plus 2 Road Lights, Incl 1 - 11

1шт.

To See Full KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
