Запчасти Case IH FARMALL 120U (55.404.170) - VAR - 335132 - ROAD LIGHT (55) - ELECTRICAL SYSTEMS

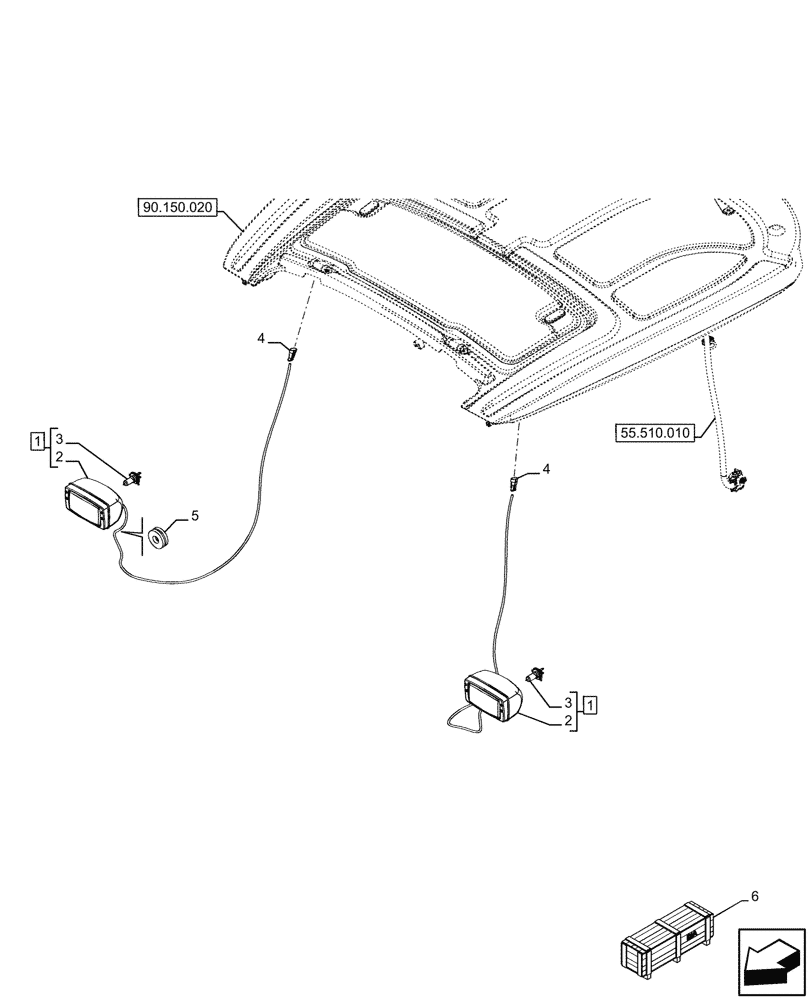

Схема запчастей Case IH FARMALL 120U - (55.404.170) - VAR - 335132 - ROAD LIGHT (55) - ELECTRICAL SYSTEMS
90.150.020
3
3
4
6
4
1
2
2
5
1
55.510.010

Артикул

Название

Примечание

Количество

1

47774042

LAMP,ECE-R, Halogen, 12V, 60/55W, Transparent

ASSY, Incl 2 (Qty 1), 3 (Qty 1)

2шт.

2

NSS

NOT SOLD SEPARAT

Lamp, Incl in 1

2шт.

3

87283179

BULB,H4, 12V, 60/55W

2шт.

4

87680689

ELEC CONNECTOR

2шт.

5

10402680

RING

2шт.

6

718075020

DIA KIT, TRACTOR

Road Light, Incl 1 - 5

1шт.

To See Full KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

718078020

DIA KIT, TRACTOR

Road Light, Incl 1 - 5

1шт.

To See Full KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 9
