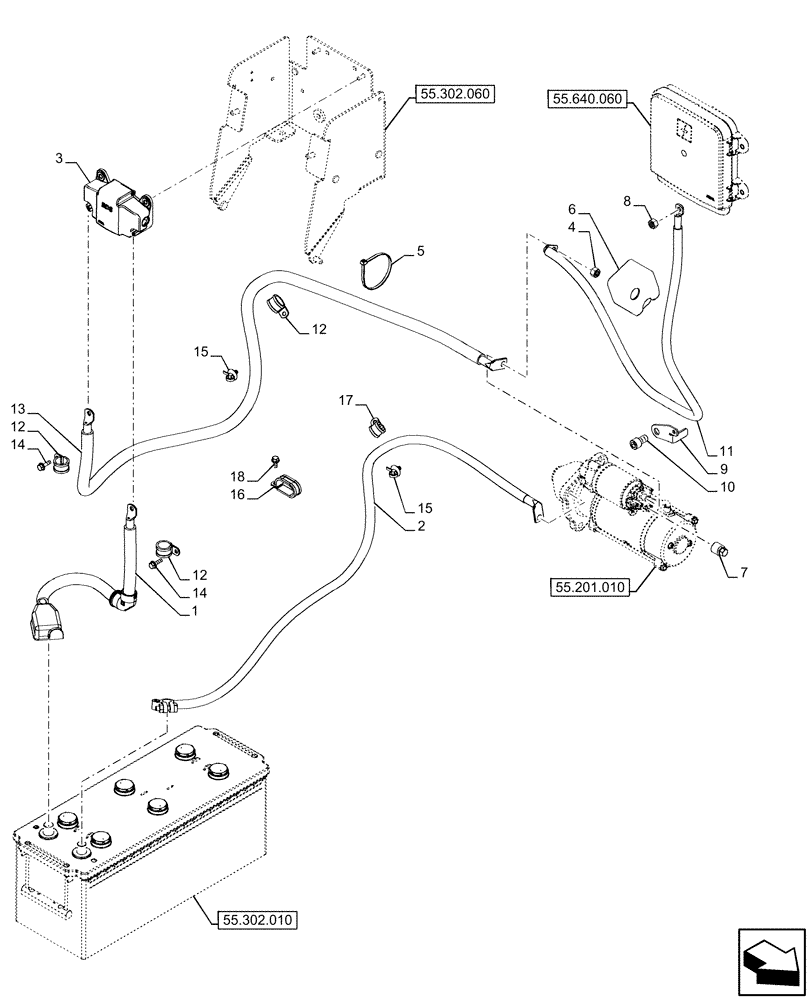

Запчасти Case IH FARMALL 120U (55.302.020) - VAR - 334774, 391741 - BATTERY CABLES (55) - ELECTRICAL SYSTEMS

1

47866255

POS BATTERY CABLE

1шт.

2

87487740

NEG BATTERY CABLE,1250mm L

1шт.

3

87716664

SUPPORT

1шт.

4

13046111

LOCK NUT,Flg Lock, M6

3шт.

5

14560287

CABLE TIE,207.00mm L

1шт.

6

87309612

COVER

1шт.

7

5171012

NUT,M10

1шт.

8

13046211

NUT,Flange Hex, M8

1шт.

9

84535463

BRACKET

1шт.

10

14432424

HEX SOC SCREW,M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

11

84575785

ELECTRIC CABLE

1шт.

12

10441890

CLAMP,22mm, Coat, 7mm Bolt Hole, P Type

3шт.

13

47638540

CABLE

1шт.

14

16286124

BOLT,M6 x 20mm, 8.8 DAC

2шт.

15

82033028

CABLE TIE,170mm L

2шт.

16

10116101

CLAMP,22mm, Coat, 7mm Bolt Hole, P Type

1шт.

17

10441690

HOSE CLIP,18mm, Coat, P Type

1шт.

18

16296924

FLANGE BOLT,Hvy Hex, M6 x 14mm, Cl 8.8, Full Thd

1шт.
