(55.035.060) - VAR - 338844 - 2 REMOTE CONTROL VALVES, REAR, SOLENOID VALVE

Запчасти Case IH FARMALL 120U (55.035.060) - VAR - 338844 - 2 REMOTE CONTROL VALVES, REAR, SOLENOID VALVE (55) - ELECTRICAL SYSTEMS

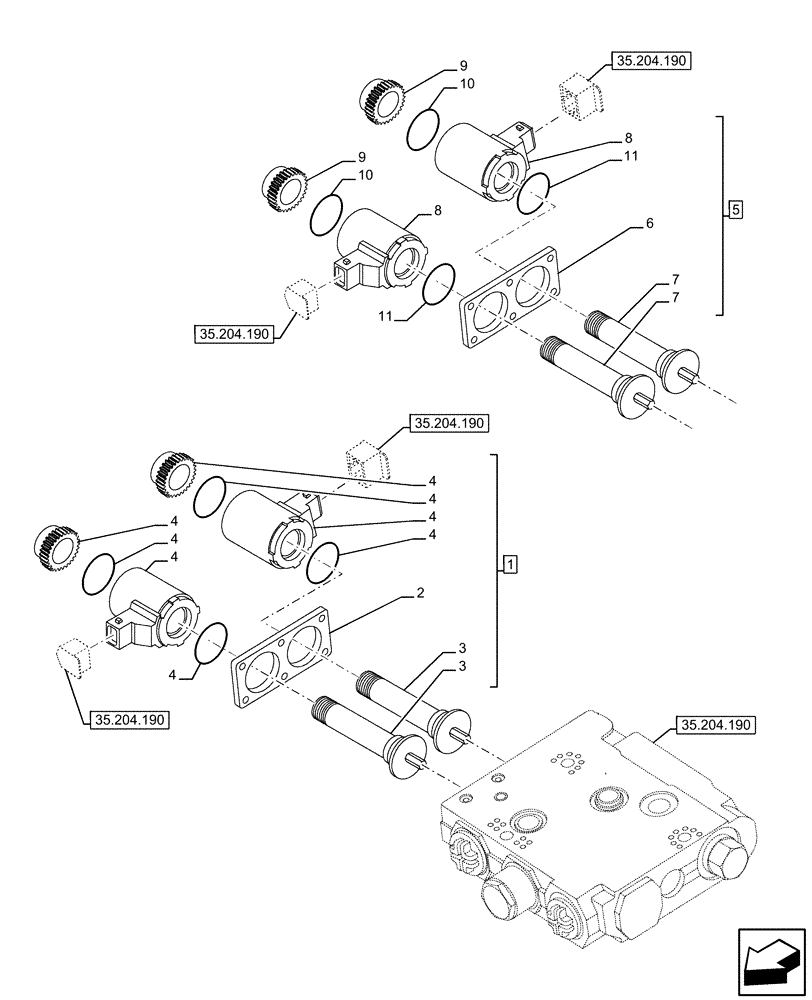

Схема запчастей Case IH FARMALL 120U - (55.035.060) - VAR - 338844 - 2 REMOTE CONTROL VALVES, REAR, SOLENOID VALVE (55) - ELECTRICAL SYSTEMS
35.204.190
9
11
4
4
1
2
5
10
4
11
4
7
8
4
10
3
6
4
7
3
4
8
4
9
35.204.190
35.204.190
35.204.190
35.204.190
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84270220

SOLENOID,3.35A

ASSY, Incl 2 - 4, Standard

1шт.

2

NSS

NOT SOLD SEPARAT

Flange, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Pressure Tube, Incl in 1

2шт.

4

5190768

COIL ASSY.

2шт.

5

47129414

SOLENOID,3.35A

ASSY, Incl 6 - 11, Alternative Part

1шт.

Same Usage/Applicability. To be Ordered when P/N 84270220 is not Available

1шт.

6

NSS

NOT SOLD SEPARAT

Flange, Incl in 5

1шт.

7

NSS

NOT SOLD SEPARAT

Pressure Tube, Incl in 5

2шт.

8

87573514

COIL

2шт.

9

87573515

CAP,27.2mm OD x 25.1mm L

2шт.

10

87635979

O-RING,2.4mm Thk x 19.6mm ID

2шт.

11

87635978

O-RING,21mm ID x 1.5mm Width

1шт.
