(55.032.010) - VAR - 758304, 758305 - TRAILER, LIGHT, EU

Запчасти Case IH FARMALL 120U (55.032.010) - VAR - 758304, 758305 - TRAILER, LIGHT, EU (55) - ELECTRICAL SYSTEMS

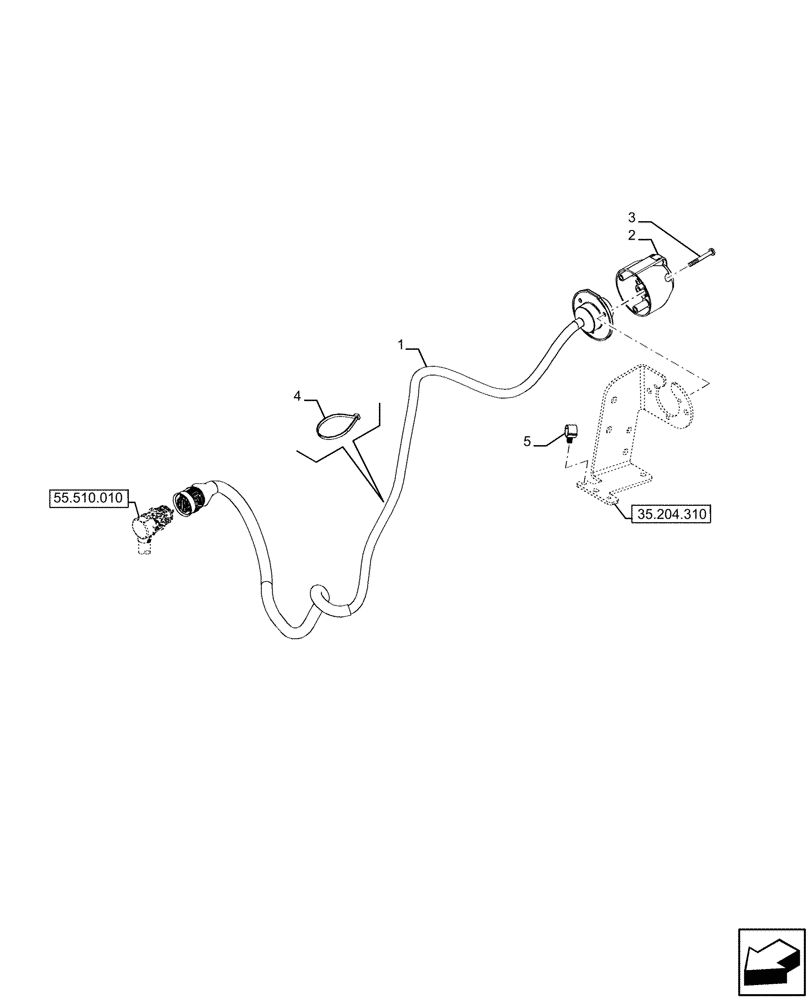

Схема запчастей Case IH FARMALL 120U - (55.032.010) - VAR - 758304, 758305 - TRAILER, LIGHT, EU (55) - ELECTRICAL SYSTEMS
35.204.310
1
5
3
4
2
55.510.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47532280

WIRE HARNESS

1шт.

2

5102156

MULTIPOLE CONNECTOR,Female, 7 Pole

3шт.

3

13274914

SCREW,Pan, M5 x 35mm L

3шт.

4

14560187

COLLAR,199mm L

2шт.

5

84161523

WIRE CLAMP,12.07mm ID

2шт.

Выбрано товаров: 5
