(55.015.020) - VAR - 334773, 391263 - ENGINE, HARNESS

Запчасти Case IH FARMALL 120U (55.015.020) - VAR - 334773, 391263 - ENGINE, HARNESS (55) - ELECTRICAL SYSTEMS

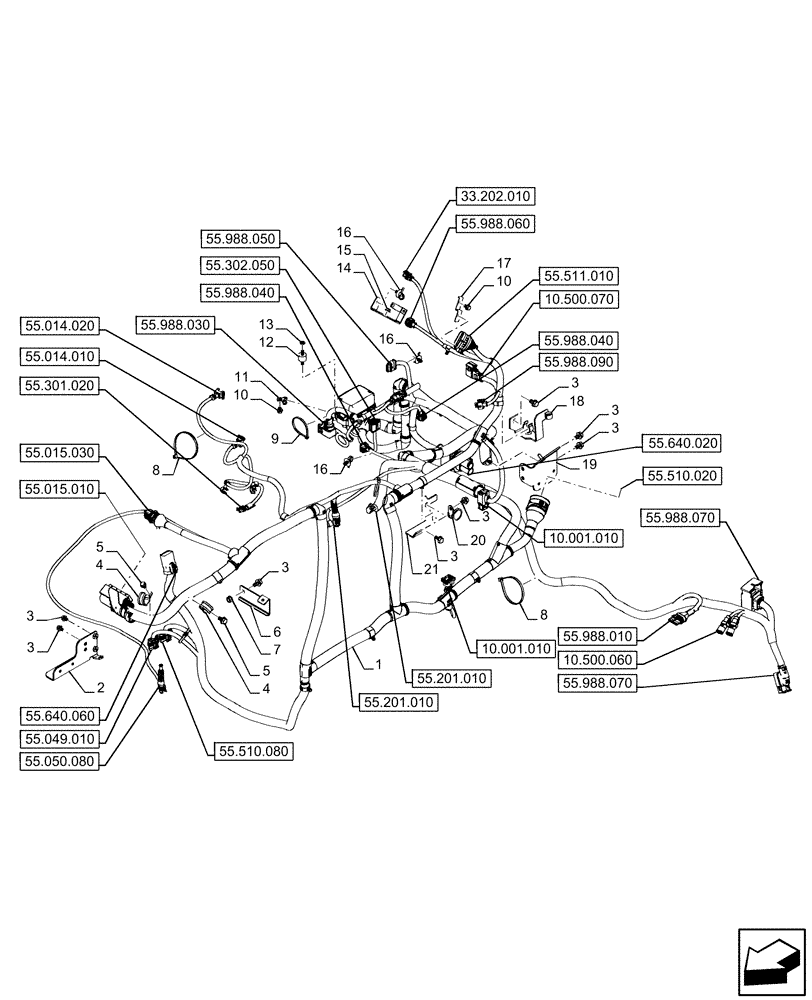

Схема запчастей Case IH FARMALL 120U - (55.015.020) - VAR - 334773, 391263 - ENGINE, HARNESS (55) - ELECTRICAL SYSTEMS
33.202.010
17
15
5
4
8
10
10
16
4
3
7
3
3
16
18
13
5
3
16
3
14
9
3
6
2
12
3
11
1
20
19
21
3
8
55.301.020
55.988.010
55.302.050
10.001.010
10.001.010
55.014.020
10.500.070
55.640.060
55.988.050
55.988.030
55.511.010
10.500.060
55.049.010
55.988.070
55.988.070
55.988.090
55.988.060
55.015.030
55.050.080
55.510.080
55.640.020
55.201.010
55.201.010
55.015.010
55.510.020
55.014.010
55.988.040
55.988.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47865518

WIRE HARNESS

1шт.

2

47798077

BRACKET

RH

1шт.

3

16281924

FLANGE BOLT,Hvy Hex, M8 x 14mm, Cl 8.8, Full Thd

5шт.

3

16285924

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8, Full Thd

4шт.

4

10417901

RETAINER,26mm, Coat, 7mm Bolt Hole, P Type

2шт.

5

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

2шт.

6

47374988

CONTROL

1шт.

7

14084411

LOCK NUT,Hex, M8 x 1.25

M8

1шт.

8

14560287

CABLE TIE,207.00mm L

8шт.

9

14560187

COLLAR,199mm L

5шт.

10

16297624

FLANGE BOLT,Hvy Hex, M6 x 10mm, Cl 8.8, Full Thd

2шт.

11

10418101

RETAINER COLLAR,6mm, Coat, P Type

1шт.

12

47706963

DAMPER,2xM6, 20mm OD x 45mm L

4шт.

13

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

14

47507271

BRACKET

1шт.

15

14059211

FLANGE NUT,M6 x 1, Flg, Cl 8

1шт.

16

82033028

CABLE TIE,170mm L

6шт.

17

47638536

BRACKET

1шт.

18

47542642

BRACKET

1шт.

19

47627147

BRACKET

1шт.

20

10442090

RETAINER,26mm, Coat, P Type

2шт.

21

47867572

BRACKET

1шт.
