(55.011.020) - VAR - 336763, 336764 - FUEL TANK, LEVEL, SENSOR

Запчасти Case IH FARMALL 120U (55.011.020) - VAR - 336763, 336764 - FUEL TANK, LEVEL, SENSOR (55) - ELECTRICAL SYSTEMS

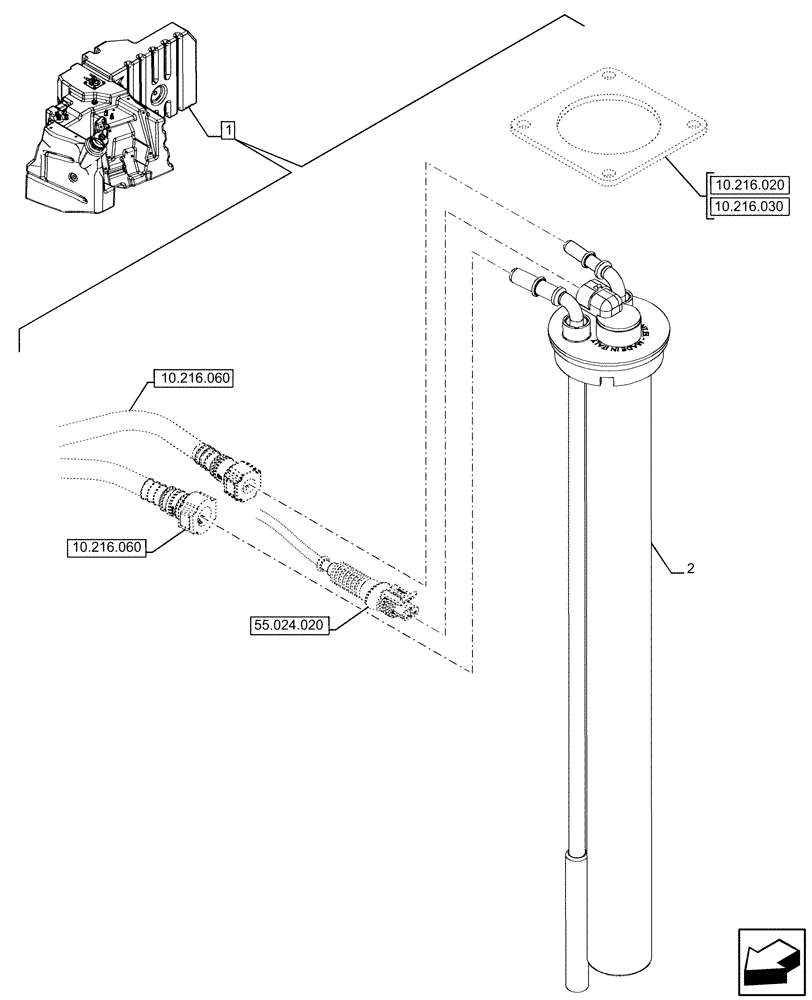

Схема запчастей Case IH FARMALL 120U - (55.011.020) - VAR - 336763, 336764 - FUEL TANK, LEVEL, SENSOR (55) - ELECTRICAL SYSTEMS
55.024.020
2
1
10.216.030
10.216.060
10.216.060
10.216.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47844804

FUEL TANK

ASSY, Incl 2

1шт.

See also Figure 10.216.030

1шт.

2

47493039

SENDER UNIT

1шт.

Выбрано товаров: 3
