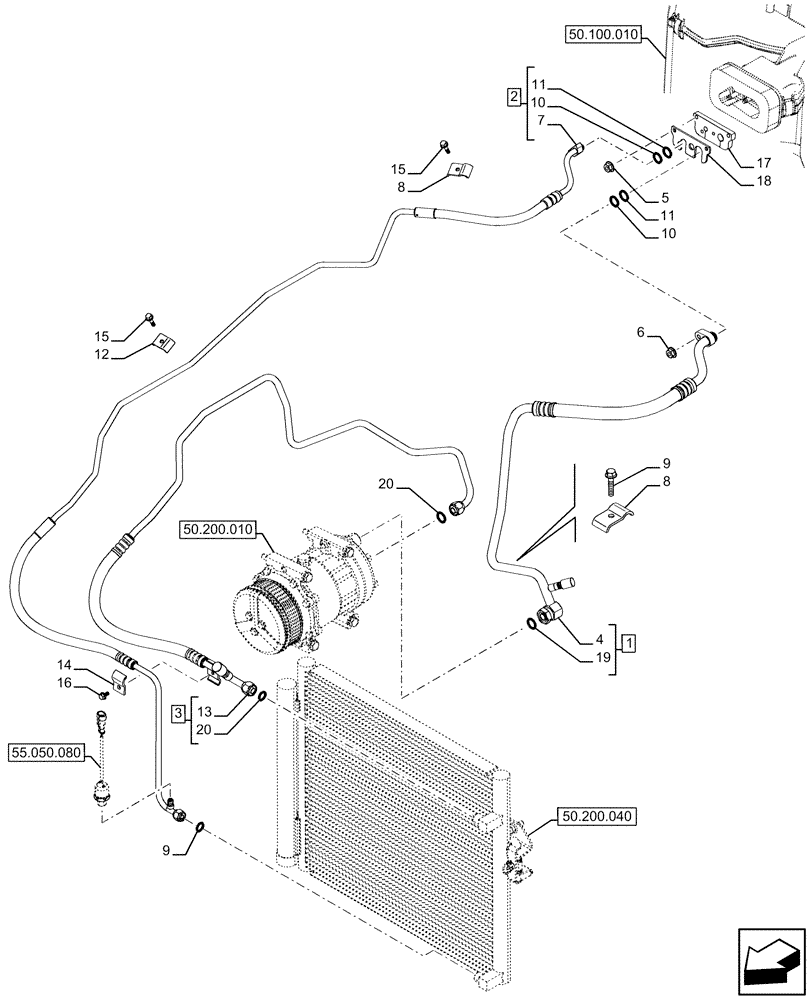

Запчасти Case IH FARMALL 120U (50.200.050) - VAR - 331444, 332147, 336730, 339434 - AIR CONDITIONING, PIPE (50) - CAB CLIMATE CONTROL

1

47673907

HOSE

Suction, ASSY, Incl 2, 4, 10 (Qty 1), 11 (Qty 1), 19

1шт.

2

47673904

HOSE

Liquid, ASSY, Incl 7, 9, 10 (Qty 1), 11 (Qty 1)

1шт.

3

47673908

HOSE

ASSY, Incl 13, 20

1шт.

4

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

5

13046011

NUT,Flange Hex, M5

2шт.

6

14059214

FLANGE NUT,Hex, M6 x 6 Thd, Cl 8

2шт.

7

NSS

NOT SOLD SEPARAT

Hose, Incl in 2

1шт.

8

84476872

BRACKET

2шт.

9

87698760

FLANGE BOLT,M6 x 36.6mm, Cl 10.9

1шт.

10

10319984

2шт.

11

14480783

2шт.

12

84475360

BRACKET

1шт.

13

NSS

NOT SOLD SEPARAT

Hose, Incl in 3

1шт.

14

84577651

BRACKET

1шт.

15

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

16

16285924

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8, Full Thd

1шт.

17

47443947

PLATE

1шт.

18

47443943

GASKET

1шт.

19

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

20

9827958

1шт.
