(50.200.010) - VAR - 758304, 758305, 758308 - A/C COMPRESSOR, SUPPORT, BELT

Запчасти Case IH FARMALL 120U (50.200.010) - VAR - 758304, 758305, 758308 - A/C COMPRESSOR, SUPPORT, BELT (50) - CAB CLIMATE CONTROL

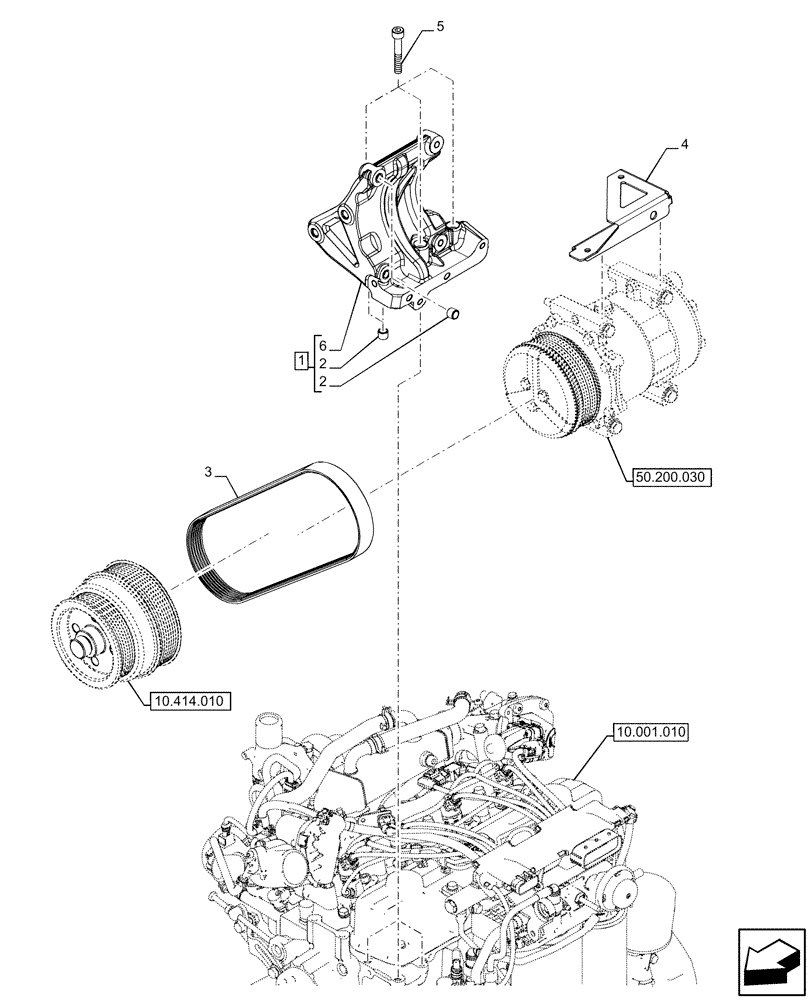

Схема запчастей Case IH FARMALL 120U - (50.200.010) - VAR - 758304, 758305, 758308 - A/C COMPRESSOR, SUPPORT, BELT (50) - CAB CLIMATE CONTROL
50.200.030
1
2
3
5
6
4
2
10.001.010
10.414.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47563906

BRACKET

ASSY, Incl 2, 6

1шт.

2

87674545

BUSHING,8.5mm ID x 11.15mm OD x 9mm L

4шт.

3

47398208

BELT,21.36mm W x 782mm L, 6 Ribs

1шт.

4

47396553

SUPPORT

1шт.

5

14306924

HEX SOC SCREW,M8 x 1.25 x 50mm, Cl 8.8

3шт.

6

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

Выбрано товаров: 6
