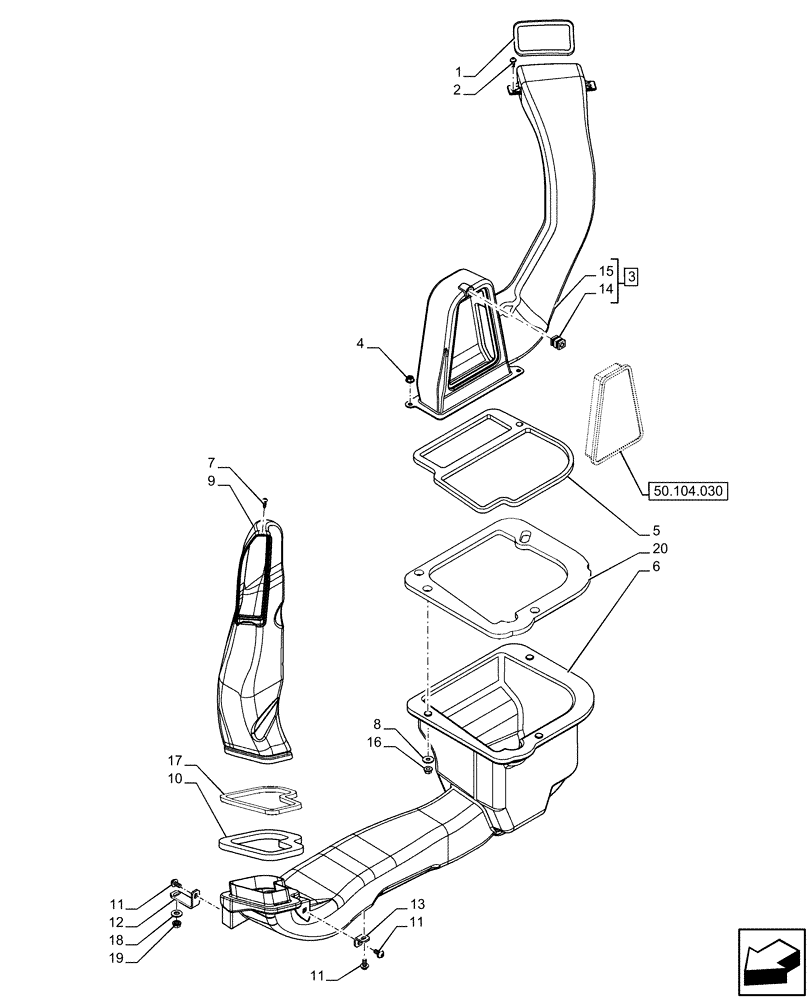

Запчасти Case IH FARMALL 120U (50.104.050) - VAR - 332147, 335387, 339434, 391246 - HEATING SYSTEM, VENTILATOR, AIR DUCT, RH (50) - CAB CLIMATE CONTROL

1

47526938

GASKET,Section, 15mm x 20mm

2шт.

2

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

2шт.

3

84268721

AIR DUCT

RH, ASSY, Incl 14, 15

1шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

5

84227353

GASKET

RH

1шт.

6

84241383

AIR DUCT

1шт.

7

5182260

SELF-TAP SCREW,M5 x 16mm L

1шт.

8

47592529

BUSHING,12mm ID x 15.9mm OD x 19mm L

3шт.

9

84222340

AIR DUCT

1шт.

10

84558849

GASKET

RH

1шт.

11

84349415

SCREW,Torx, Round HD, M6 x 12mm, Cl 10.9

3шт.

12

84332658

BRACKET

1шт.

13

84598457

BRACKET

1шт.

14

44911602

THREADED INSERT

1шт.

15

NSS

NOT SOLD SEPARAT

Duct, Incl in 3

1шт.

16

13046111

LOCK NUT,Flg Lock, M6

3шт.

17

84350446

GASKET

RH

1шт.

18

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

1шт.

19

15896211

NUT,M6, Cl 8

1шт.

20

47382803

INSULATION

RH

1шт.
