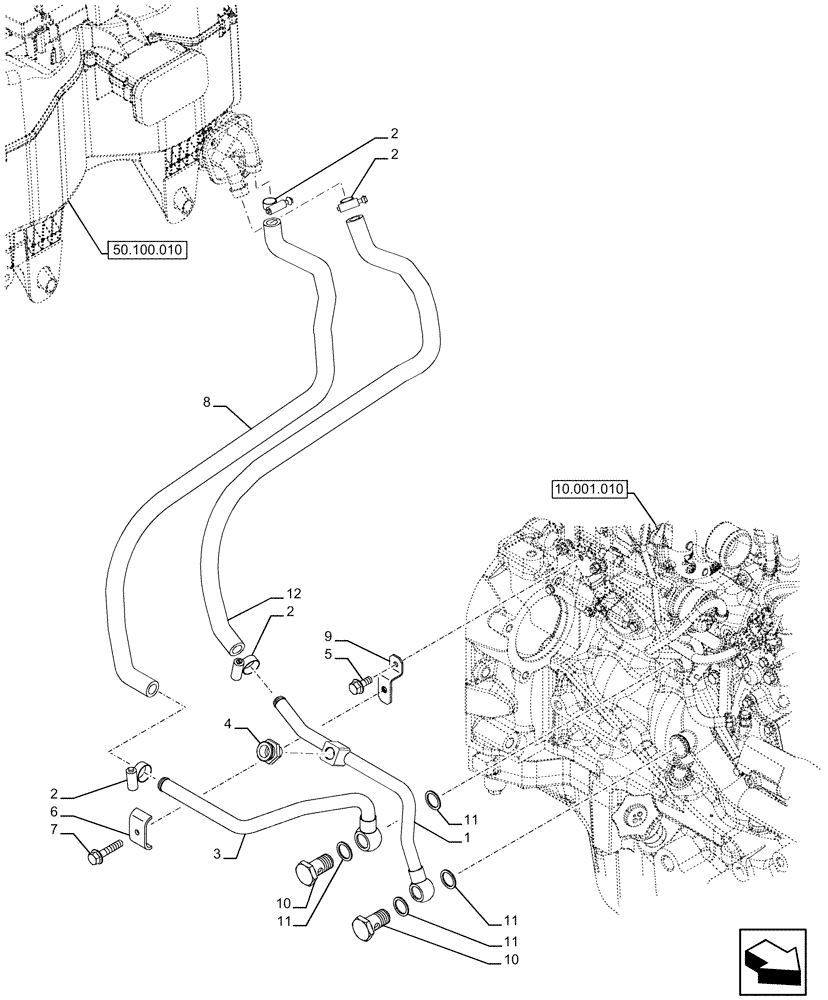

Запчасти Case IH FARMALL 120U (50.100.050) - VAR - 331444, 332147, 335387, 336730, 339434, 391246 - HEATING SYSTEM, HYDR LINES (50) - CAB CLIMATE CONTROL

1

47483866

HEATER HOSE,12mm ID

1шт.

2

82039343

HOSE CLAMP,16mm - 27mm

4шт.

3

47573021

HEATER HOSE,13mm ID

1шт.

4

82035326

ADAPTER

1шт.

5

16297624

FLANGE BOLT,Hvy Hex, M6 x 10mm, Cl 8.8, Full Thd

1шт.

6

87588821

BRACKET

1шт.

7

16286324

BOLT,Hex, M6 x 30mm, Cl 8.8

1шт.

8

84599660

HEATER HOSE

1шт.

9

47914016

BRACKET

1шт.

10

5100984

BANJO BOLT,M18 x 1.5, 34mm L

2шт.

11

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

4шт.

12

84599664

HEATER HOSE

1шт.
