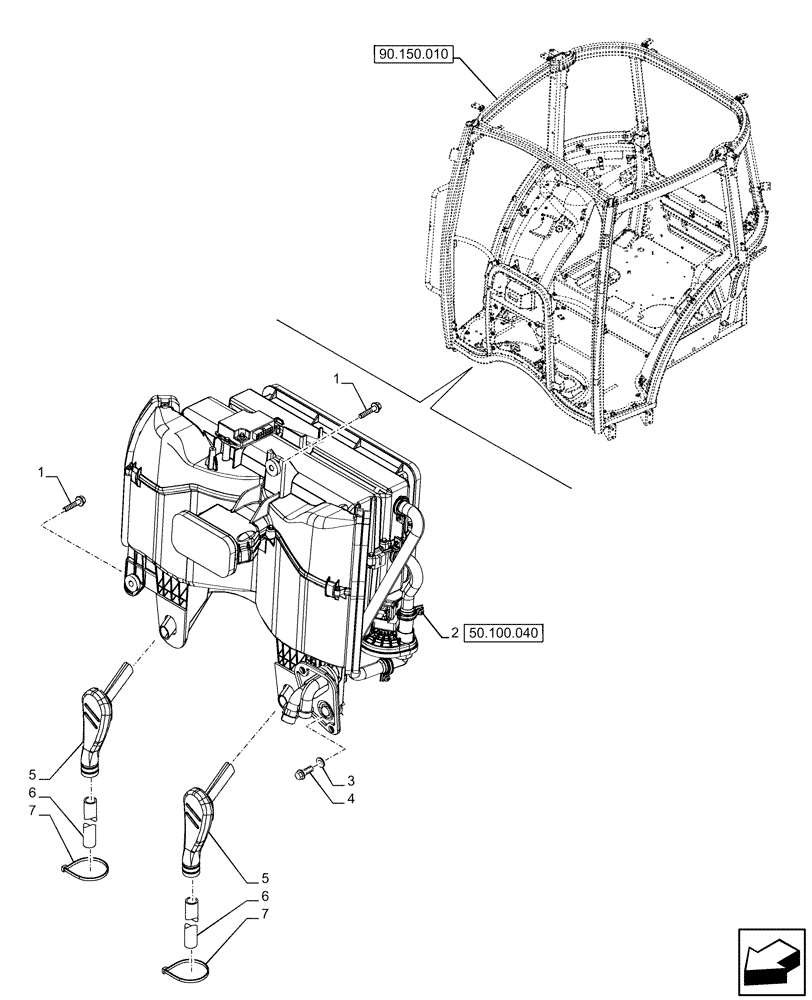

Запчасти Case IH FARMALL 120U (50.100.030) - VAR - 335387, 391246 - HEATER (50) - CAB CLIMATE CONTROL

1

16286324

BOLT,Hex, M6 x 30mm, Cl 8.8

2шт.

2

84481759

HEATER

ASSY

1шт.

See Heater Module also in Figure 55.050.060

1шт.

3

83962575

WASHER,6.6mm ID x 12.5mm OD x 1.6mm Thk

2шт.

4

10902234

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

2шт.

5

84319940

PLASTIC-RUBBER TUBE

2шт.

6

84396347

FLEXIBLE HOSE,12.7mm ID x 660mm L

2шт.

7

14560187

COLLAR,199mm L

2шт.
