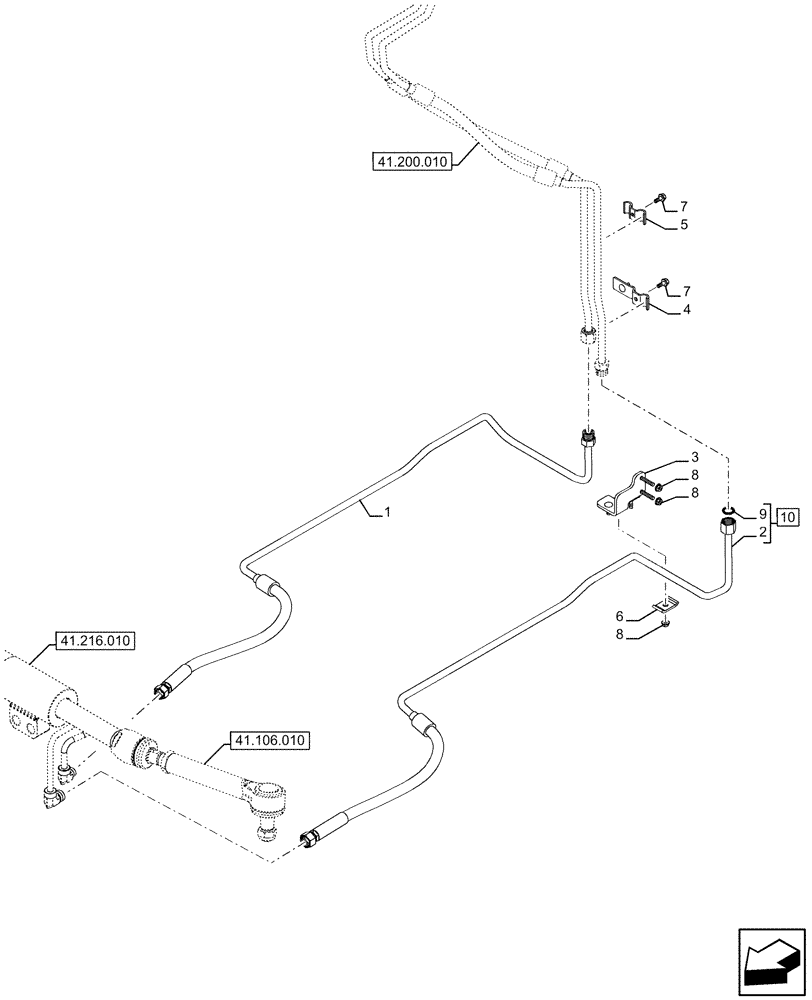

Запчасти Case IH FARMALL 120U (41.216.020) - VAR - 330308, 390399, 758331 - HYDRAULIC STEERING, LINE, STEERING CYLINDER (41) - STEERING

1

47676352

PIPE

from Hydraulic Steering to Steering Cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

Pipe, Incl in 10

1шт.

3

47859555

BRACKET

1шт.

4

47677882

BRACKET

1шт.

5

44906584

RETAINER COLLAR,12mm ID

1шт.

6

84519154

HOSE CLAMP

1шт.

7

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

2шт.

8

14059214

FLANGE NUT,Hex, M6 x 6 Thd, Cl 8

M6

3шт.

9

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

10

47676340

PIPE

ASSY, from Hydraulic Steering to Steering Cylinder, Incl 2, 9

1шт.
