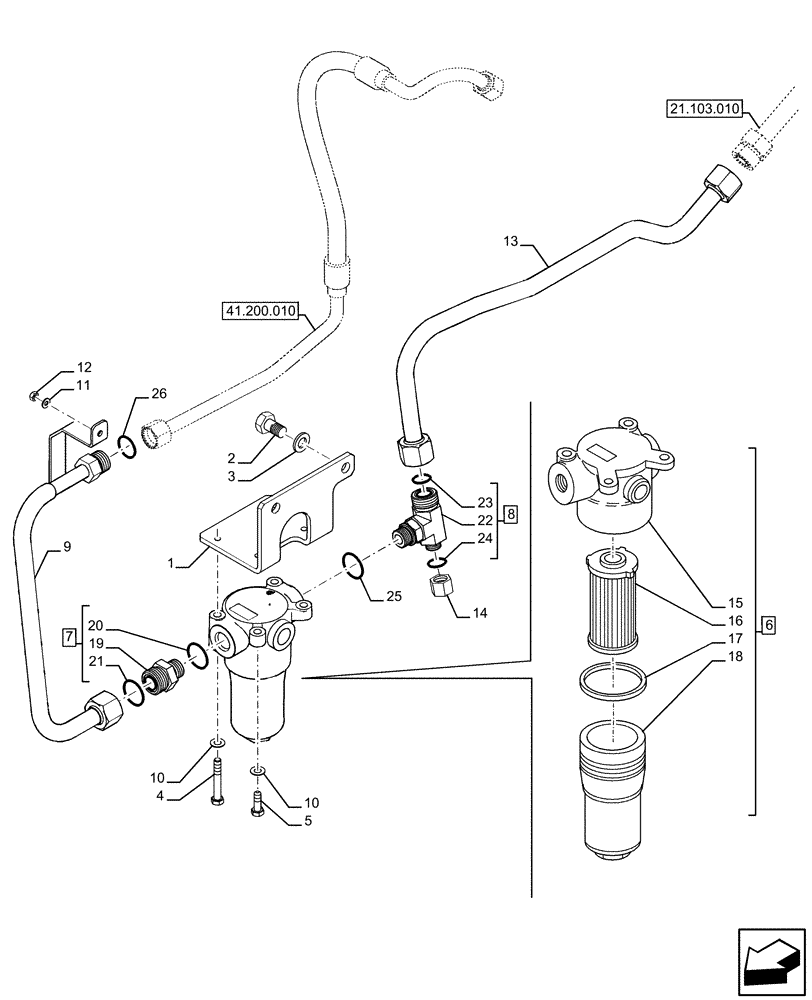

Запчасти Case IH FARMALL 120U (41.200.020) - VAR - 334119, 390434 - HYDRAULIC STEERING, FILTER & LINE (41) - STEERING

1

47446982

BRACKET

1шт.

2

11112821

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

2шт.

3

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

2шт.

4

86900240

BOLT,Hex, M8 x 55mm, Cl 8.8

2шт.

5

16043628

BOLT,Hex, M8 x 25mm, Cl 8.8

2шт.

6

5197006

FILTER

ASSY, Incl 15 - 18

1шт.

7

86579681

HYD CONNECTOR,1-3/16"-12 ORFS x M22 x 1.5 ORB

ASSY, Incl 19 - 21

1шт.

8

87687885

HYD CONNECTOR

ASSY, Incl 22 - 24

1шт.

9

47462270

TUBE

1шт.

10

12602474

WAVE WASHER,Wave, M8.3

4шт.

11

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

12

15896214

NUT,M6, Cl 8

1шт.

13

47447280

TUBE

1шт.

14

9625546

CAP,11/16" - 16 ORFS

1шт.

15

NSS

NOT SOLD SEPARAT

Cup, Incl in 6

1шт.

16

5194879

ELEMENT

1шт.

17

5194880

O-RING KIT

1шт.

18

NSS

NOT SOLD SEPARAT

Housing, Incl in 6

1шт.

19

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

20

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

21

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

22

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

1шт.

23

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

24

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

25

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

26

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
