(37.120.250) - VAR - 758326 - 3 POINT HITCH, REAR, LIFT ARM, HYDRAULIC, COMPONENTS

Запчасти Case IH FARMALL 120U (37.120.250) - VAR - 758326 - 3 POINT HITCH, REAR, LIFT ARM, HYDRAULIC, COMPONENTS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

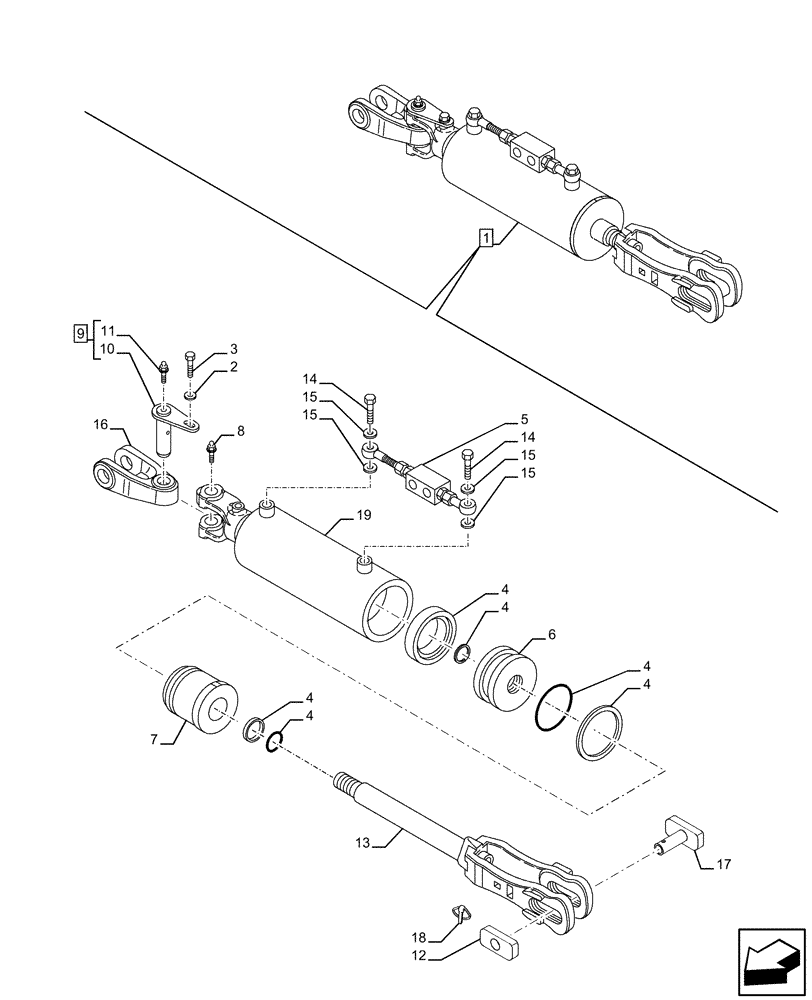

Схема запчастей Case IH FARMALL 120U - (37.120.250) - VAR - 758326 - 3 POINT HITCH, REAR, LIFT ARM, HYDRAULIC, COMPONENTS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
5
7
9
8
14
18
4
4
12
15
4
2
4
4
6
17
16
10
1
15
4
13
15
15
19
14
3
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47569262

TIE-ROD

ASSY, Incl 2 - 19

1шт.

2

14496611

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

3

15970621

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

4

47630981

SEAL KIT

1шт.

5

47630977

CONTROL VALVE

1шт.

6

47631192

PLUNGER

1шт.

7

47631199

HEADER

1шт.

8

87588865

FITTING,M6 x 1 x 12mm L

1шт.

9

47130642

PIN,25mm OD x 92mm L

ASSY, Incl 10, 11

1шт.

10

47130640

PIN,25mm OD x 92mm L

1шт.

11

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

12

84336752

PLATE

1шт.

13

NSS

NOT SOLD SEPARAT

Fork, Incl in 1

1шт.

14

47630978

BANJO BOLT

2шт.

15

47630975

SEAL

4шт.

16

47130648

YOKE,28mm D x 25mm D

1шт.

17

47601993

HEADED PIN

1шт.

18

47125579

LINCH PIN,11.5mm OD

1шт.

19

NSS

NOT SOLD SEPARAT

Cylinder, Incl in 1

1шт.
