(37.120.210) - VAR - 758325 - 3 POINT HITCH, REAR, TOP LINK, HYDRAULIC

Запчасти Case IH FARMALL 120U (37.120.210) - VAR - 758325 - 3 POINT HITCH, REAR, TOP LINK, HYDRAULIC (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

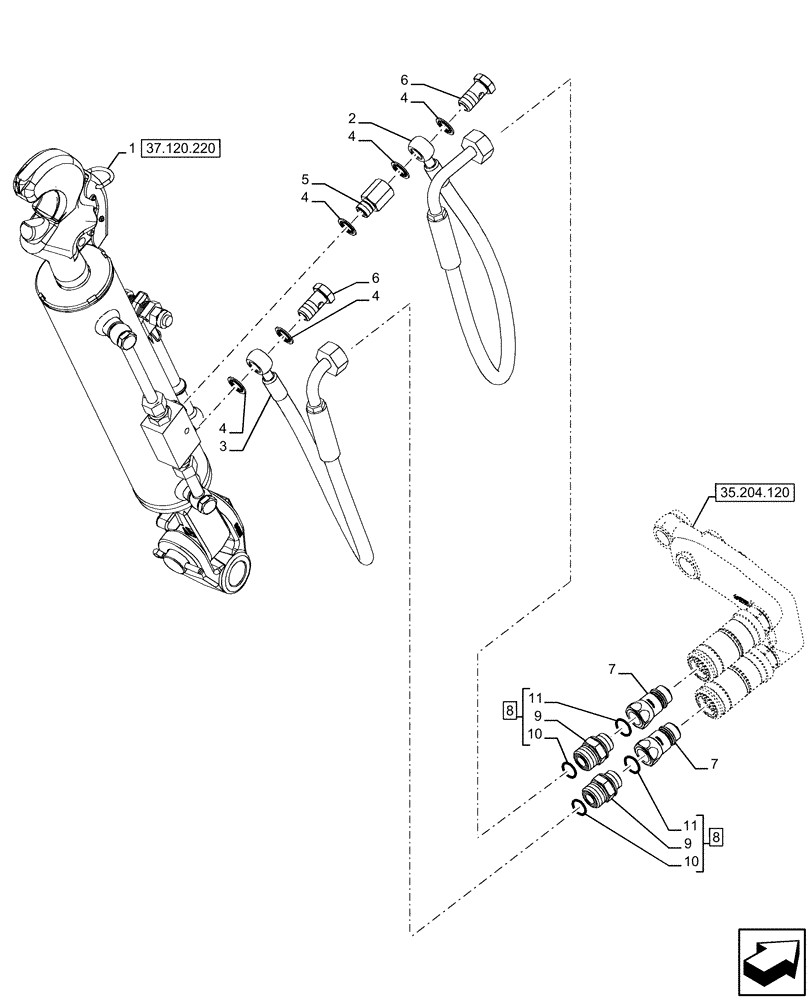

Схема запчастей Case IH FARMALL 120U - (37.120.210) - VAR - 758325 - 3 POINT HITCH, REAR, TOP LINK, HYDRAULIC (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
35.204.120
11
4
8
10
4
4
11
10
3
9
4
5
9
1
7
8
6
2
7
4
6
37.120.220
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47580076

LINK

ASSY

1шт.

2

47754416

HYDRAULIC HOSE

1шт.

3

47754407

HYDRAULIC HOSE

1шт.

4

5167639

SEALING WASHER,13.4mm ID x 24mm OD x 1.5mm Thk

5шт.

5

47755517

SPACER

1шт.

6

10184411

BANJO BOLT,M16 x 1.5 x 31mm, R50

2шт.

7

83972881

COUPLING

2шт.

8

5185524

HYD CONNECTOR

ASSY, Incl 9 - 11

2шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

2шт.

10

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

11

14457380

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

2шт.

Выбрано товаров: 11
