/ / / / / / / / (37.120.190) - VAR - 758325 - 3 POINT HITCH, REAR, TOP LINK, HYDRAULIC, COMPONENTS

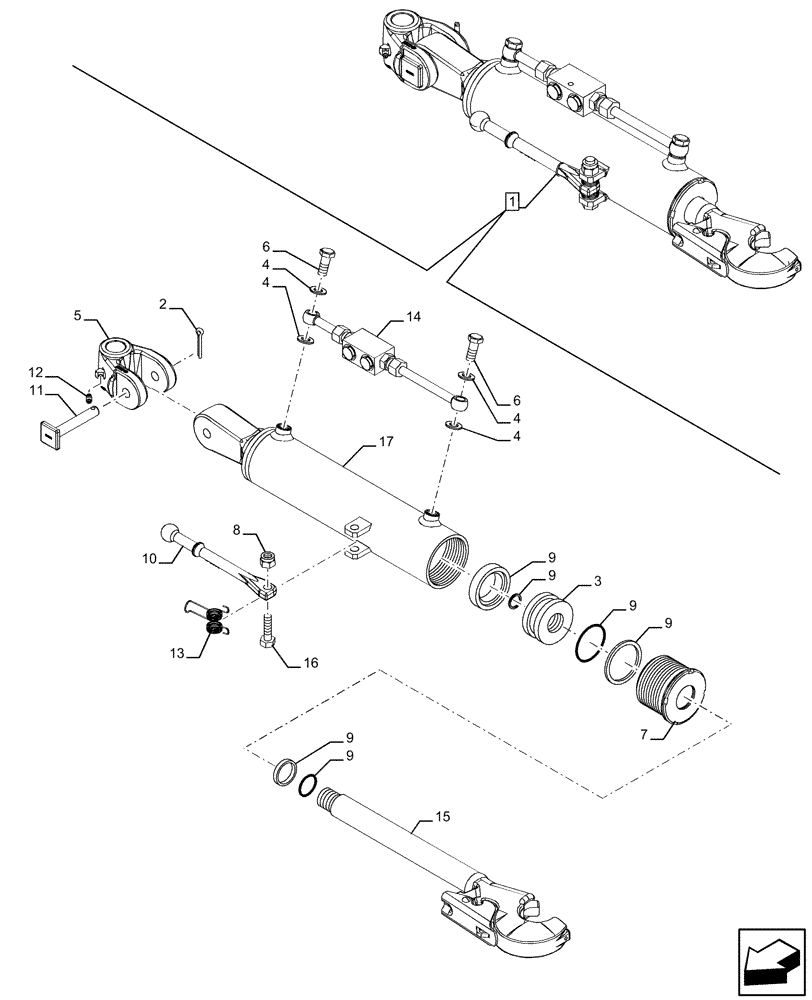

Запчасти Case IH FARMALL 120U (37.120.190) - VAR - 758325 - 3 POINT HITCH, REAR, TOP LINK, HYDRAULIC, COMPONENTS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
3
9
9
9
13
11
5
17
4
6
9
4
4
4
9
1
6
2
15
9
16
12
7
8
10
14
1
47575593
LINK
ASSY, Incl 2 - 17
1шт.
2
300423
COTTER PIN,M6.3 x 50
1шт.
3
47630335
PLUNGER
1шт.
4
47630975
SEAL
4шт.
5
5161787
YOKE,28mm D x 28mm D
1шт.
6
47630978
BANJO BOLT
2шт.
7
47630980
HEADER
1шт.
8
87497916
NUT,Hex, M12 x 1.75, Cl 8
1шт.
9
47630981
SEAL KIT
1шт.
10
5172394
LEVER
1шт.
11
5161789
PIN,34mm OD x 91mm L
1шт.
12
13407811
LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm
1шт.
13
47630979
SPRING
1шт.
14
47630977
CONTROL VALVE
1шт.
15
NSS
NOT SOLD SEPARAT
Lift Link, Incl in 1
1шт.
16
300809
BOLT,Hex, M12 x 1.75 x 65mm, Cl 8.8
1шт.
17
NSS
NOT SOLD SEPARAT
Cylinder, Incl in 1
1шт.
