(37.120.170) - VAR - 758325 - 3 POINT HITCH, REAR

Запчасти Case IH FARMALL 120U (37.120.170) - VAR - 758325 - 3 POINT HITCH, REAR (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

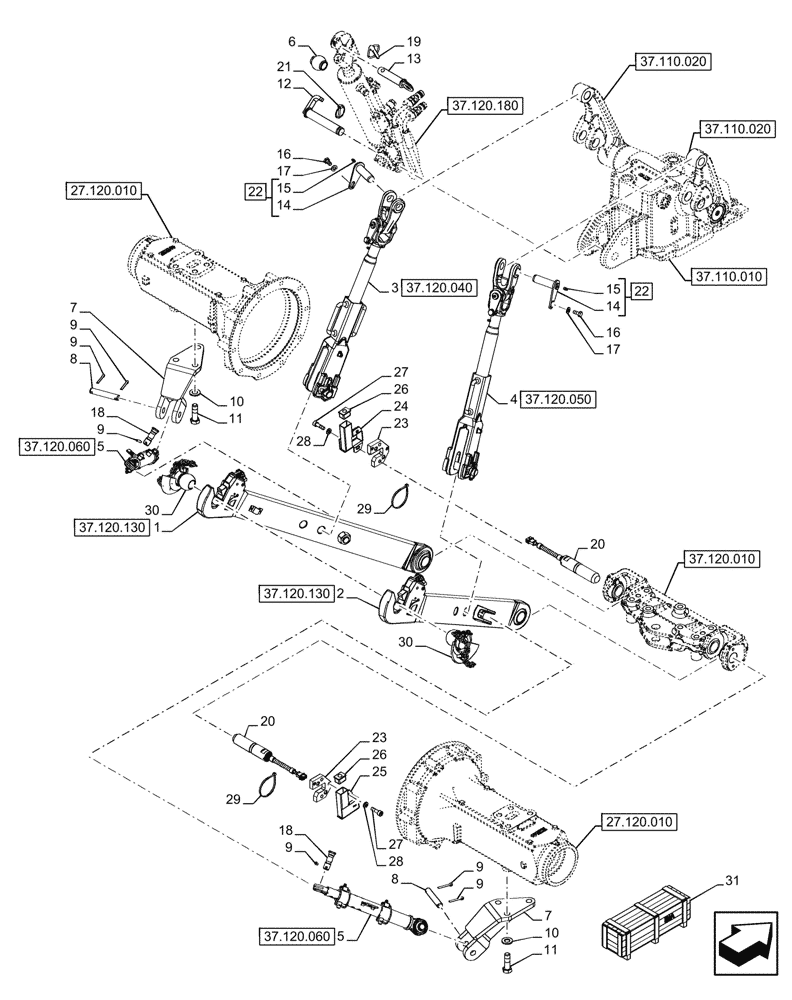

Схема запчастей Case IH FARMALL 120U - (37.120.170) - VAR - 758325 - 3 POINT HITCH, REAR (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
27.120.010
9
2
15
7
31
20
14
19
6
16
10
17
9
9
20
3
29
15
27
4
17
9
22
23
1
10
14
25
18
5
26
30
27
21
23
8
22
11
9
13
28
18
26
29
24
11
9
5
16
30
12
7
8
28
37.110.020
37.110.020
37.110.010
37.120.040
37.120.060
37.120.060
37.120.130
37.120.130
37.120.010
37.120.050
37.120.180
27.120.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84336285

LIFT ARM

ASSY, LH

1шт.

2

84336265

LIFT ARM

ASSY, RH

1шт.

3

47567223

TIE-ROD

ASSY, LH

1шт.

4

47567673

TIE-ROD

ASSY, RH

1шт.

5

84338289

TOP LINK

ASSY

2шт.

6

5172480

BALL,25.4mm ID x 50mm OD

1шт.

7

84347440

SUPPORT

2шт.

8

5125861

PIN,19mm OD x 105mm L

2шт.

9

10798301

COTTER PIN,M6.3 x 36

6шт.

10

11191679

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

6шт.

11

11244634

BOLT,Hex, M18 x 1.5 x 60, 10.9

6шт.

12

47584444

HEADED PIN

1шт.

13

822483

PIN,25.5mm OD x 137mm L

1шт.

14

47130640

PIN,25mm OD x 92mm L

1шт.

15

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

16

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

2шт.

17

14496611

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

18

47133051

PIN,20mm OD x 59mm L

2шт.

19

5166585

LOCK PIN,11mm OD

1шт.

20

87661284

SENSOR

2шт.

21

82014909

LOCK PIN,5.5mm OD

1шт.

22

47130642

PIN,25mm OD x 92mm L

ASSY, Incl 14, 15

2шт.

23

83998827

RETAINER

2шт.

24

87586750

SHIELD

1шт.

25

87586763

SHIELD

1шт.

26

47374761

GROMMET,14mm ID, Black

2шт.

27

47134668

HEX SOC SCREW,M10 x 1.25 x 35mm

4шт.

28

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

4шт.

29

14560287

CABLE TIE,207.00mm L

2шт.

30

5127760

BALL

2шт.

31

718212010

DIA KIT, TRACTOR

Hydraulic Top Link, Incl 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
