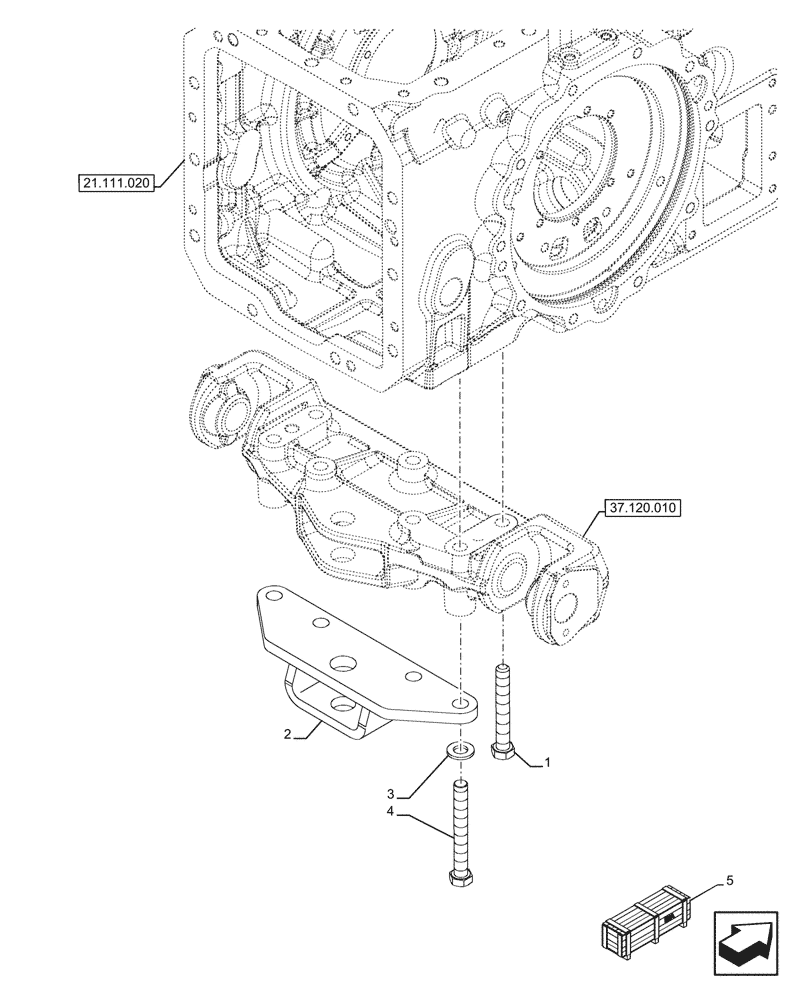

Запчасти Case IH FARMALL 120U (37.100.010) - VAR - 330905, 330912, 335127, 335129 - DRAWBAR SUPPORT (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

15864224

BOLT,Hex, M16 x 1.5 x 115mm, Cl 8.8

3шт.

2

82003409

BRACKET

1шт.

3

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

4шт.

4

15864334

BOLT,Hex, M16 x 1.5 x 130mm, Cl 10.9

4шт.

5

718913060

DIA KIT, TRACTOR

Swinging Drawbar, Incl 2 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

710907180

DIA KIT, TRACTOR

Swinging Drawbar, Incl 2 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

719912070

DIA KIT, TRACTOR

Swinging Drawbar, Incl 2 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
