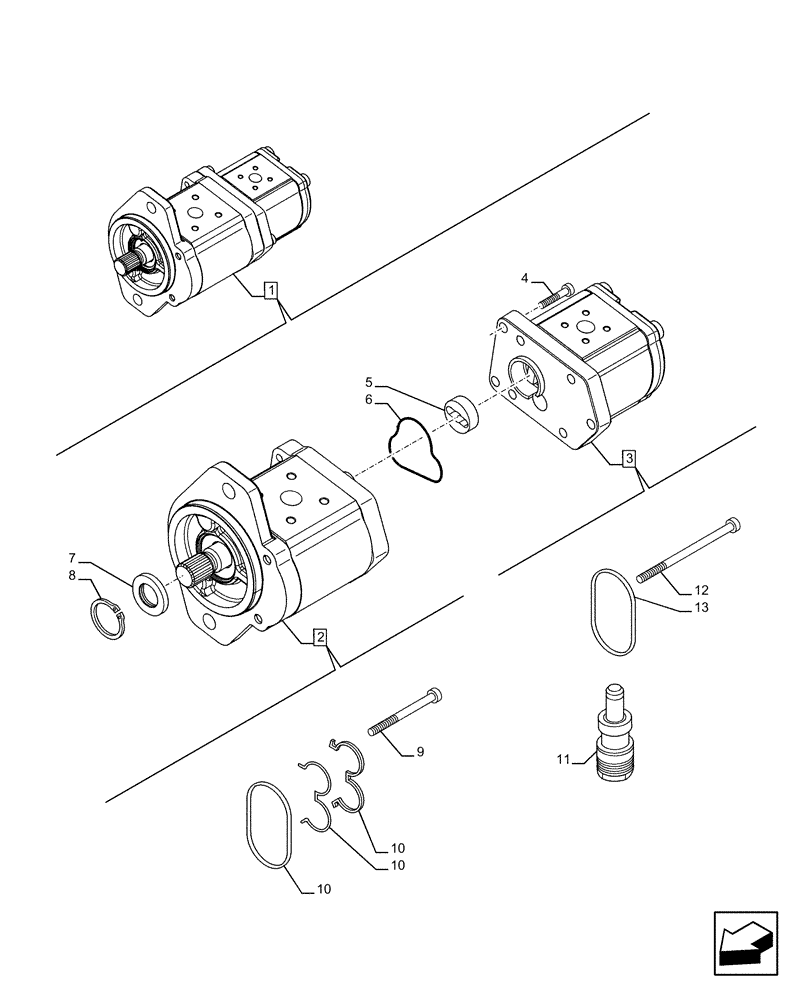

Запчасти Case IH FARMALL 120U (35.304.040) - VAR - 334119 - PUMP 80LT (32CC/16CC), COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47456761

HYDRAULIC PUMP,29.62 CC

ASSY, Incl 2 - 13

1шт.

2

84555760

PUMP

ASSY, Incl 7 - 10

1шт.

3

47456040

HYDRAULIC PUMP

ASSY, Incl 11 - 13

1шт.

4

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

3шт.

5

84555743

BUSHING

1шт.

6

84150956

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

1шт.

7

84555746

OIL SEAL

1шт.

8

47129430

RETAINER

1шт.

9

47456039

SCREW

4шт.

10

84555759

OIL SEAL

1шт.

11

47499279

VALVE PRESSURE RELIE

1шт.

12

84165047

SCREW

4шт.

13

87601759

SEAL KIT

1шт.
