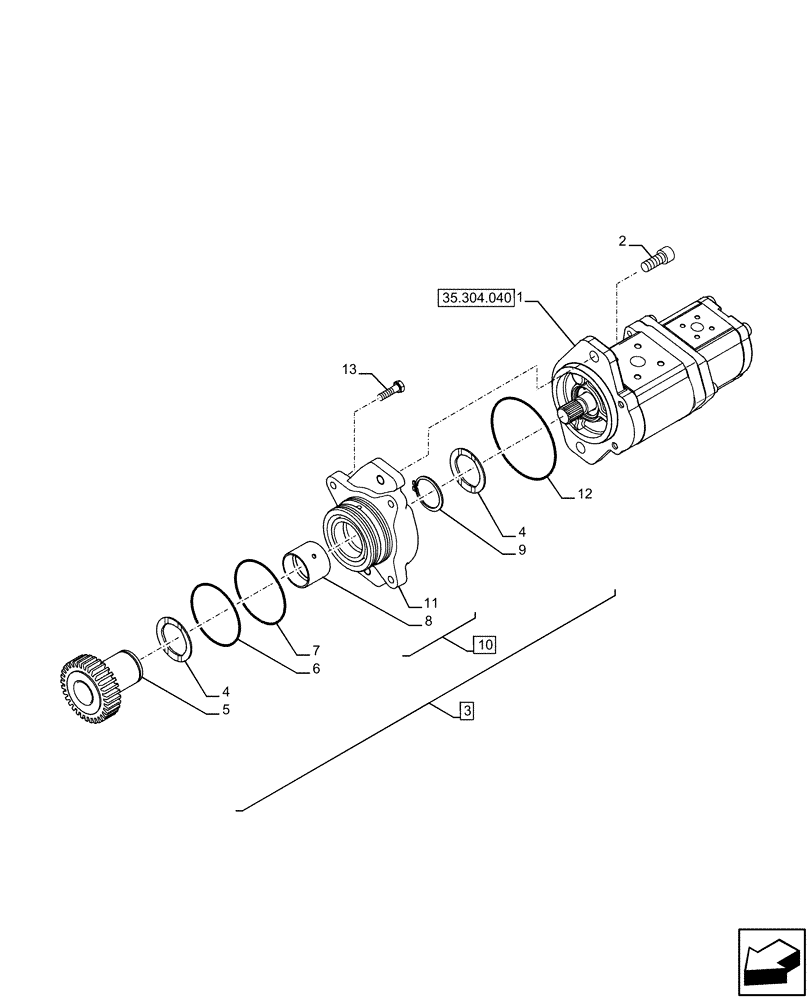

Запчасти Case IH FARMALL 120U (35.304.030) - VAR - 334119 - PUMP 80LT (32CC/16CC) (35) - HYDRAULIC SYSTEMS

1

47456761

HYDRAULIC PUMP,29.62 CC

ASSY, See also Pump Components in Figure 35.304.040

1шт.

2

14422021

HEX SOC SCREW,M12 x 30mm, Cl 8.8

2шт.

3

84529396

DRIVE

ASSY, Incl 4 - 11

1шт.

4

84529401

WASHER,18mm ID x 42mm OD x 1.8mm Thk

2шт.

5

84414878

PTO SHAFT,80.3mm L, 32T

1шт.

6

14465281

O-RING,2.984" ID x 3.262" OD x 0.139"

1шт.

7

14465381

O-RING,3.109" ID x 3.387" OD x 0.139"

1шт.

8

84529392

BUSHING,142.03mm ID x 145.97mm OD x 35mm L

1шт.

9

11068976

SNAP RING,M42, Ext

1шт.

10

84529391

DRIVE

ASSY, Incl 8, 11

1шт.

11

NSS

NOT SOLD SEPARAT

Flange. Incl in 10

1шт.

12

14461380

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

13

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

3шт.
